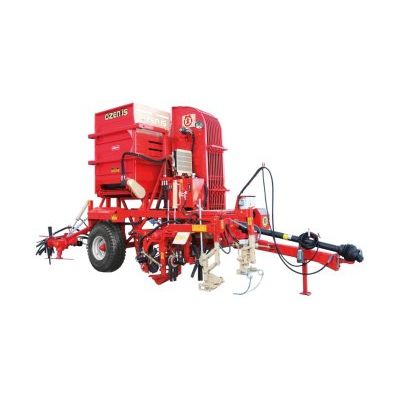

Combined Sugar Beet Harvesting Machine


Tractor drawn attaching to read works by the movement of the tractor pto. Our self-oiled machines except PTO and 12 volt power battery ,from the tractor does not want any requirements. Lift the drum unit and stars all units of the external machine with a hydraulic system is working. Electronics – Power control allows a range of dismantling and removal of beet automatically adjusts the height. Net 2.5 tons of storage that can receive and reach a height of 425 cm and placement of the loading process is easy and can do in a short time. Our machine has Test Report of Konya Selçuk University Faculty of Agriculture.

Lift Automatic Return
As a result of stone jam elevator lift unit turned back and moved the unit automatically provides disposal. If there not turning back scored again repeats this process until disposal. Additionally, the process control lever manually with the button on the back you can lift. In this way, mouth of lift is clean at all time.

The Crank Type Digging Unit
Through the crank-type digging mechanism , muddy terrain collection and dismantling dismantling mud on their legs to the mouth of the collected sludge removal mechanism eliminates the influence. Digging weeds in grassy land that is also on the crank-type mechanism for dismantling can not influence.

Discharge Tank Return
Control lever is pressed on the run drain discharge unit, returning at first in the mouth, which draws beet backwards; If you take your finger from the key turning in the right direction to operate the unloading process. This process ensures the tank drain unceasingly.

Height: 3320 mm.
Width: 3250 mm.
Length: 4250 mm.
Weight: 2600 kg
The Distance Between Wheels: Min:2025 / Max:2250 mm
Loading Height: 4200 mm
Tire Size: 12.5 /80 – 15.3 14 layers
Tail Shaft Speed: 540 rpm
Moving Speed: 2,3 ve 4 Slow Gear
Work Capacity: 1.8 -2.3. da/h
Head Cutting System: Spring-loaded Comb System
Second Row Preparation Unit: Double Cleaning Unit and Spring
Color: Red
