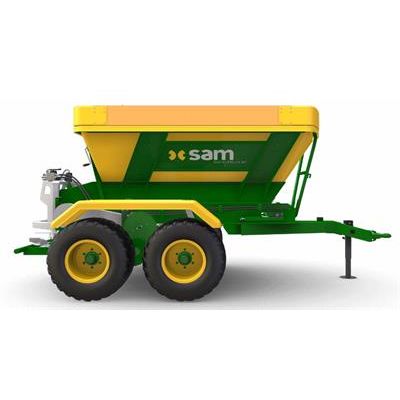

SAM - Model 6 Tonne -Combo Spreader
With the same practical design and easy to use operation that all SAM’s are known for, the SAM Combo Spreaders (800 Series) provide extra versatility around what you are able to spread. They are capable of spreading chemical fertiliser including; superphosphate, urea and lime. But will also spread most organic product like chicken and pig manure, screw-pressed effluent and sand. Available with capacities of 4, 6, 8 and 9 Tonne. All come standard with an 800mm floor belt and are generally tandem axle. Keep it simple with a standard ground drive, or upgrade to the latest smart, accurate computer control system with weigh scales.
More stainless for longevity
Majority stainless at the rear of the machine, extends longevity of gear where you need it most. The stainless discs are run via enclosed stainless spinner tubes and two well-proven hydraulic motors. Easily adjustable tapered roller bearings keep disks tight.
Corrosion resistant paintwork
All chassis`s on SAM Spreaders have seen a new evolution of painting procedure. This is for extra corrosion protection. Firstly a steel grit abrasive blast then a thermal-arc pure zinc spray, a primer followed by a final two-pot epoxy top-coat. It is mega tough stuff!
Strong plastic bin
The polyethelyne plastic bin has proven to be extremely reliable. They are strong, corrosion resistant and UV-stabilised. Fertiliser also slips down the sides and washes off easily when you are cleaning your gear.
Even, accurate spread
The SAM twin spinner disc design gives an accurate and consistent spread pattern across a range of products. Quick and simple rate setting is by adjusting the rear door.
Load weigh scales
You can add scales to your spreader. This gives simple, accurate electronic weighing of your feed. And can be zeroed out any time. More info below.
Computer control system
You can also add a computer control system to replace the standard ground drive. This gives hydraulic floor speed rate and control. More info below.
Less cleaning with mudguards!
Mudguards are moulded from UV-stabilised polyethylene, and resistant to most chemical and organic fertilisers. Debris chips to the chassis and running gear are reduced and less cleaning required. Mudguards come standard on all tandem axle models below 8 tonne.
Rubber floor-belt (800mm wide)
Provides a positive non-slip feed of fertiliser onto the spinner discs. A two-ply rubber floor-belt is riveted to hot-dip galvanised steel bars, welded to high-tensile chain. Stainless skirts run alongside.
Material agitator
This optional extra is designed to break up and crumble organic material like screw pressed effluent. This improves the flow to fall consistently onto the spinner discs.
Swivel coupling adds stability
Smaller spreaders come standard with a fixed coupling. The 6, 8 and 9 tonne spreaders come standard with a heavy-duty swivel coupling. They are great for varied terrain. You can choose a donut eye for coupling with a quick hitch or the ball option for tractor coupling.
Protective mesh
Stops large objects dropping down and damaging the belt and gear.
App for verifying rates
A great check against your back door setting to verify exactly what you are spreading. This is for use with Spreaders fitted with load cells. Currently Android only
- Axle type Tandem-axle 70mm
- Axle capacity 12,000kg
- Wheel type 400/60 x 15.5 14-ply
- Jack type 70mm screw jack
- Overall length 4.9m
- Overall width 2.75m
- Overall height 2.2m
- Bin width 2.1m
- Bin length 2.9m
- Capacity 5m3
- Superphosphate 6T
- Lime 8T
- Urea 4T
