Cometi - Model Sun Steel FL - Canopy for Two Parking Spaces
From Photovoltaic

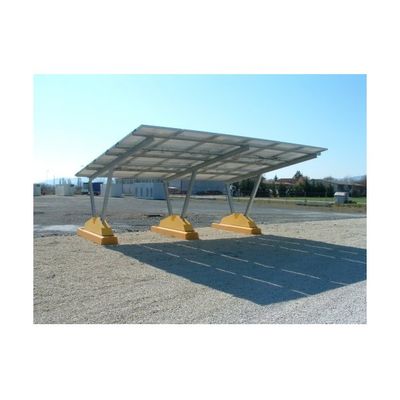

Canopy for two + two parking spaces, with architectural columns and flat covering, which can be oriented N-S or S-N, and with PV panels of crystalline.
-
Most popular related searches
Features
- For 2 parking spaces
- Useful dimensions: mm 5.570 (W) x 4.870 (L) x max. 3.200 – mix. 2.000 (H) (with inclination of 15°)
- Bearing posts made of shaped steel that, thanks to their specific drawing, create a very elegant and slim structure
- Standard inclination of 15° both on the front and rear side according to the position of the assembling; others are available on demand
- Supporting roof structure with tubular profiles
- Modules supporting structure made of Omega profiles
- PV modules fixing by means of anti-theft bolts and nuts
- For n. 18 photovoltaic modules of crystalline of mm 1.650 x 992 (235W each)
- Zinc-coated structure according to UNI EN ISO 1461:2009 (or painted with a RAL colour and with a system that includes a rust preventer primer and refinishing coat)
- PV modules fixing by means of anti-theft bolts and nuts
- Stainless steel bolts and nuts
- Structure calculated and verified for winds up to 100 km/h
- Structure calculated and verified for snow up to 100 kg/sqm
- Fixing to the ground made on concrete plinths (not included on the supply)
