Vermeer - Model T655 -Commander 3 Tractor

• Improve job monitoring with the exclusive Vermeer TEC Plus Electronic Control System.
• Dig trenches for cross-country pipeline using the optional bucket wheel attachment.
• Increases operator safety thanks to the industry’s first Rollover Protective Structure (ROPS).
• Put the spoils where you want them with optional longer, wider conveyors that place soil farther from the machine.
• Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3,000-hour or 5-year/5,000-hour warranty on the components of the closed loop hydrostatic systems.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

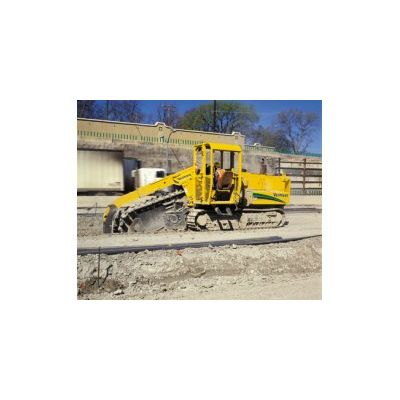

When rugged jobsite conditions demand a reliable solution, look to the Vermeer® T655 COMMANDER® 3 trencher. Equipped with innovative features including a Rotary Power headshaft motor for exceptional cutting performance and the Vermeer-exclusive TEC Plus® electronic control system for monitoring real-time machine performance, the T655 COMMANDER 3 delivers the muscle and versatility to tackle the toughest trenching jobs.

A Tier 3 John Deere 6090 diesel engine provides 250 hp (186.4 kW) for rock-solid results on jobs requiring depths of up to 8` (2.4 m). In addition to providing better boom visibility, the operator’s platform is equipped with the Rollover Protective Structure (ROPS) for enhanced operator safety.

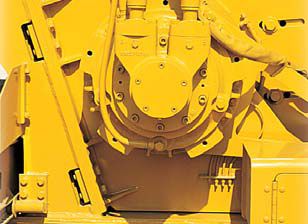

Improve cutting operations with a low-speed, high-torque motor. Because the large Rotary Power headshaft motor and splined headshaft produce lower speed and higher torque, you’re assured greater production as cutting teeth better penetrate rock and minimize chainwear.

The new TEC® Plus electronic control system features CAN bus technology, which utilizes multiple control modules located throughout the machine for real-time performance data and advanced troubleshooting capabilities.

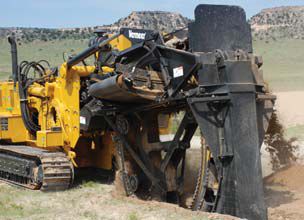

Bucket Wheel. An optional bucket wheel attachment has the ability to cut 22", 24" or 28" (55.9 cm, 61 cm or 71.1 cm) wide trenches. Designed for the installation of small-diameter crosscountry pipelines, the bucket wheel also helps increase productivity in soft soils.

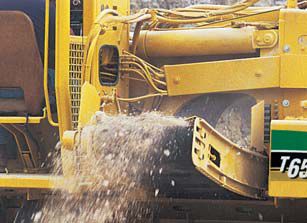

Increase spoil removal with longer, wider conveyors. The T655 COMMANDER 3 features an optional 8` (2.4 m) or 12` (3.7 m) conveyor with 24" (61 cm) wide belts, allowing the operator to pull more spoil from the ditch and deposit it farther from the machine when using larger boom / cutter combinations.

Transport Dimensions

Approach angle: 16°
Height: 119" (302.3 m)
Length with 20" (50.8 cm) end idler and 4`, (1.2 m) boom: 26` (7.9 m)
Length with 20" (50.8 cm) end idler and 6`, (1.8 m) boom: 28` (8.5 m)
Length with 20" (50.8 cm) end idler and 8`, (2.4 m) boom: 30` (9.1 m)
Length with 40" (101.6 cm) end idler and 4`, (1.2 m) boom: 24` (7.3 m)
Length with 40" (101.6 cm) end idler and 5`, (1.5 m) boom: 25` (7.6 m)
Length with 40" (101.6 cm) end idler and 6`, (1.8 m) boom: 26` (7.9 m)
Length with 40" (101.6 cm) end idler and 8`, (2.4 m) boom: 29` (8.8 m)
Weight range: 40,000 lb – 56,000 lb, (18,143.7 kg – 25,401.2 kg)
Width: 97" (246.4 cm)

Engine

Make and model: John Deere 6090 HF
Gross horsepower: 250 hp (186.4 kW)
Rated engine rpm: 2200
Number of cylinders: 6
Fuel tank capacity: 110 gal (416.4 L) Operating range: 8.9 hr
Fuel consumption @ full load: 12.3 gph
(46.6 L/h)
Max engine operating angle*: 30°
Air cleaner: Dry-type exhaust-aspirated
Aspiration: Turbocharged and air-to-air aftercooled (ATAAC)
Cooling medium: Liquid
Electrical system: 12-V DC
Oil filter: Full-flow
*Engine operating angles do not indicate safe machine operating angles.

Tracks

Auto self-level: Yes
Min ground pressure: 7.78 psi (53.6 kPa)
Max ground pressure: 9.69 psi (66.8 kPa)
Tilt track available: Yes
Tilt track max angle: 10.5º
Track drive type: Dual-path hydrostatic with planetary transmission
Track length: 11.4` (3.5 m)
Track pad type: Single, double or triple grouser
Track pad width range: 20" (50.8 cm)
Track size: D4
Max ground speed - low: 125 ft/min (38.1 m/min)
Max ground speed - high: 250 ft/min (76.2 m/min)
Parking and emergency brake: Springapplied, hydraulic release, wet disc brake
Service brakes: Hydrostatic

Conveyor

Belt width: 24" (61 cm)
Conveyor belt speed range: 0 – 758 fpm, (0 – 231 m/min)
Conveyor belt style: Cleated
Conveyor length: 96" and 144" (243.8 cm and 365.8 cm)
Conveyor shift available: Yes
Conveyor shift distance: 12" and 48" (30.5 cm and 121.9 cm)
Conveyor style: Flat or curved
Discharge direction: Right or left
Discharge height: 48" and 56" (121.9 cm and 142.2 cm)

Cab

Cab: Optional
Control system: TEC Plus
Air conditioner / heater: Yes, with cab option
Air suspension seat: No
AM/FM stereo with weather band: Yes, with cab option
Elevating: No
Pressurized / Filtered air: Yes, with cab option
Rollover Module (ROM): No
Rollover Protective Structure (ROPS): Standard split ROPS (cab or platform)

Hydraulic System

Oil tank capacity: 85 gal (321.8 L)
Oil type: Vermeer HyPower 68 or Vermeer HyPower 100
Pressure setting: 2500 psi (172.4 bar)
Pump flow @ max rpm: 25 gpm (94.6 L/m)
Pump type: Pressure- and flow-compensated (load sensing)

Trencher Attachment

Boom depth options: 4`, 5`, 6`, 8` (1.2 m, 1.5 m, 1.8 m, 2.4 m)
Sectionalized boom: Yes
Boom top rollers: Optional with sectional boom
Min chain speed: 617 fpm (188.1 m/min)
Max chain speed: 881 fpm (268.5 m/min)
Cutting width range: 10.5", 12",14", 16", 18", 20", 24", 26" (26.7 cm, 30.5 cm, 35.6 cm, 40.6 cm, 45.7 cm, 50.8 cm, 61 cm, 66 cm)
Digging chain size: 4501 and 4502
Idler diameter: 20" (50.8 cm) or 40" (101.6 cm)
Trencher drive type: Hydrostatic, two pumps and one motor

Bucket Wheel Attachment

Height: 10.42` (3.2 m)
Width: 8.08` (2.5 m)
Length: 34.83` (10.6 m)
Gross weight*: 53,500 lb (24,267.2 kg) *Does not include headshaft and motor (used with trencher option). Add 2500 lb (1134 kg) for headshaft and motor.
Cutting width: 22", 24" or 28" (55.9 cm, 61 cm or 71.1 cm)
Cutting depth: 80" (203.2 cm)
