Lastec - Model WZ1000 - Commercial Zero ...

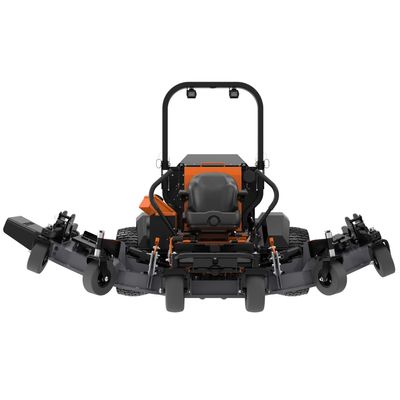

Lastec - Model WZ1000 -Commercial Zero Turn Mower

SHARE

Featuring a massive 120” cutting width, five 25" flex decks, and zero turn maneuverability, the WZ1000 is the world’s largest zero turn mower with the accuracy of five small push mowers. Built in the USA, the WZ1000 commercial zero turn mower fits the production needs of commercial landscapers, lawn care professionals, sports fields, and golf courses.

Most popular related searches

zero turn mower

commercial mower

commercial landscape

agriculture rotary mower

WZ1000 Flex Deck Zero Turn Wide Area Mower

49HP Kubota® Tier 4 3-cylinder, turbo-charged, liquid-cooled diesel engine
120" cutting width is 15% more productive than a 104" zero turn mower
Five 25" flex decks with up to 24° of total up/down motion
24.5" Side reach, reduces hand mowing and trimming near ponds, ditches or banks.
Up to 8.73 acres per hour
Electric quick-lift deck with 94" transport width
Tool-free deck height adjustment from 1" to 4-1/2"
Side, rear, and mulching discharge capabilities (Mulch kit included)

The WZ1000 includes five 25" independently flexing decks with up to 24° of total up/down flex for superior cut quality in even the most challenging contours and valleys. With the 120” cutting width, zero turn accuracy, and up to 10 mph speed, the WZ1000 is 15% more productive than a 104” zero turn mower and 67% more productive than a 72” zero turn mower.

Powered by a 49HP turbo-charged Tier 4 diesel engine, the WZ1000 zero turn mower features quick-lift electric decks for easy transport or storage, tool-free deck height adjustment for quick on-site height changes, and 17-gallon fuel capacity for less fueling downtime. In addition, Lastec’s patented belt-driven decks require minimal maintenance and provide unmatched fuel efficiency compared to hydraulically driven rotary mowers that often cost 50% more to own and operate.

Premium Cut Quality

Lastec flexing decks provide a premium quality of cut throughout the entire width of cut from wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

When you need to avoid the sun’s heat and damaging rays, our sunshades s are more than a convenience, they’re a necessity. Designed to install quickly, with no drilling. And they’re built with quality materials that repel the sun’s harmful UV rays for years to come.

Provides sun protection for operating comfort
Tough, acrylic-coated polyester
Lightweight, durable aluminum frame
Clamps to roll bar without drilling

Fits WZ1000, WZ800, WZ600, WZ400. Lastec part #067086. Call dealer for pricing.

P701 High-Lift Blade
P849 Low-Lift Blade
P848 Gator Mulching Blade
063266 Ultra Low-Lift Blade
048898 Anti-Scalp Blade Disc

DIMENSIONS

Length 92”
Width (mowing) 138”
Width (transport) 94”
Height (ROPS up) 82”
Height (ROPS down) 57”
Unit Weight 3,395lbs
Wheelbase 54”
Rear Track 60”
Frame Construction Fully Welded, 1.5"x3"x3-16" Structure Tubing

ENGINE

Type Kubota® D1803-CR-TE4B 3-cylinder, turbo-charged, liquid-cooled diesel
Emissions Level EPA Tier 4 final, stage IIIB
Rated Horsepower 49.6 hp (SAE J1995)
Displacement 111.4 cu. in.
Engine Controls Digital
PTO Warner 300 ft-lb Clutch w/ Magnetic Brake
Air Cleaner 6” dual element, dry cartridge
Cooling System Type Pressurized radiator, forced circulation with water pump
Alternator Capacity 12V, 60A
Oil System Type Forced lubrication by trochoid pump
Oil Capacity 1.85 U.S. gal
Oil Filter Type Full-flow, replaceable spin-on type
Fuel Capacity 13.5 U.S. gallons

TRACTION SYSTEM

Max Forward Speed 10 mph
Max Reverse Speed 3 mph
Wheel Motors Parker 477cc TF Series
Drive Pumps Hydro-Gear* PW Series
Front Tires Two 13 x 6.5-6, smooth, semi-solid
Rear Tires Two 26 x 12-12, 6-ply, turf tread
Parking Brake Two mechanical drum-type on rear wheels
Steering Dual-lever hydrostatic differential type with rear wheels
Hydraulic Oil Filters Full-flow, replaceable spin-on type
Hydraulic Oil Cooler Pressurized, forced-air

CUTTING DECK SYSTEM

Cut Width120”
Cut Width (Feet)10` (3.048m)
Discharge Options Side, Rear, and Mulching Discharge Capabilities
Curb clearance in inches 4.5"
Blade Spindles 3- Cast Steel Spindle Assemblies, Utilizing 3 Sealed Bearings Each
Blades Five 25” High Lift
Belts Double Envelope Kevlar Main Drive & Deck Belts
Deck Segments Five articulating, 7ga welded construction
Deck Construction 3/16"x1/2" (4.76mmx127mm) Solid Steel Bar Leading Edge
Height of Cut Range 1”-4-1/2” in ¼” increments
Height Adjustment Manual with spacers (9 adjustment points)
Acres per Hour 8.73 (assumes 10% overlap, no stops, and average speed of 8 mph)
Transport Lift Type Two electric-over-hydraulic actuators
Deck Caster Wheels Eight 11 x 4-5, smooth, no-flat
Deck Thickness 3/16 7ga.
Deck Leading Edge 1/2"x1/4"
Blade Length 25" (63.5cm)
Articulation p/m 12 degrees
Height of Cut Change- Timing 5 min
Height of Cut Change- Tools required None
Height of Cut Change- Person`s Required 1
# of Decks 5
Number of Grass chutes 1,3(rear)
Discharge Capability Side, Rear, Mulching
Bearing/Spindles 5
Pulleys(Cast or Split) Cast
Tires 10 (2 pneumatic)
Rows of fixed wheels 3
Hydraulic Cylinders 2
Hydraulic Connections 16
Hydraulic Manifold 0
Hydraulic Fluid Capacity 5 quarts
Pulleys 18
Blade Tip Speed 18,500 FPM (approximate)
Number of Belts 7
Size of Belts 6
3" Back-Bend Idlers 6
1/4 Turn Belt Twists 2
Spring Loaded Idlers 2
Grease Points 20
Steer/Stick Stick
Seat (High-Back/Mid-BackDeluxe) High-Back, with Arm-rests
Seat Suspension Air-Ride
4WD/ 2WD 2WD
Belt or Hydro Drive Belt
