Pezzolato - Model PTH 30.50 M - Compact and Agile Drum Chipper
PTH 30.50 M compact and agile drum chipper with an excellent price/quality ratio. The chippers PTH 30.50 M are dedicated to small companies and to maintenance operators of urban, woodland and forestry green areas. They have a compact, light and agile design and they are easy to use and maintain, reliable and durable. These drum machines are available in two engine types; they can be platform-mounted, on trailer version equipped with height-adjustable drawbar, eventually mounted on a turntable for rotating the intake up to 360°, or on tracks and radio remote control (for working on uneven and swampy terrain). Thanks to a chipping drum with a diameter of 520 mm and 3 knives, the PTH 30.50 can chip branches and small logs up to a 30 cm diameter and, at the same time, process off-cuts, branches and pruning, producing good-quality wood chips even from low-value material.
The machines of the PTH 30.50 series can be fed manually or by mechanical means, or by mixed solutions. For those users operating exclusively with manual loading, the chipper is equipped with a robust safety bar and a state-of-the-art push-button panel to ensure an intuitive and safe managing of the machine by the operator, present by the machine board.
Thanks to the large hopper, the chipper can also be fed by means of a forestry grapple: in this case the supply includes a special remote control.
A specific set-up is also available for those who use either the manual and the automatic loading mode: the machine is equipped with a safety bar and push-button panel that can be excluded when feeding with external mechanical means.
The main wear parts are specially designed to be low cost and allow easy replacement.

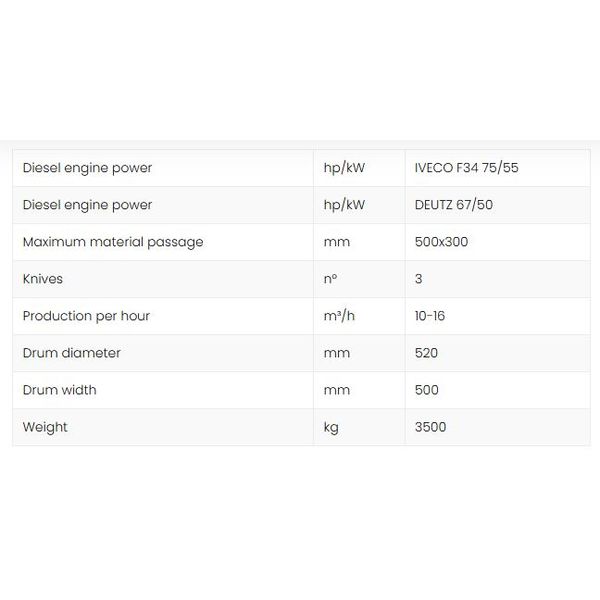

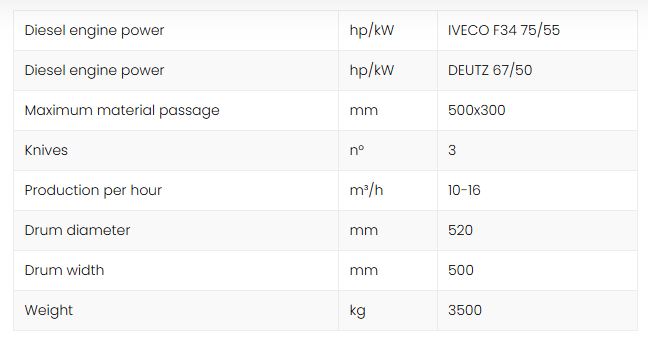

- 75 HP / 55 KW: Tractor power
- 300 mm: Maximum chipping diameter
- 500x300 mm: Maximum inlet passage
