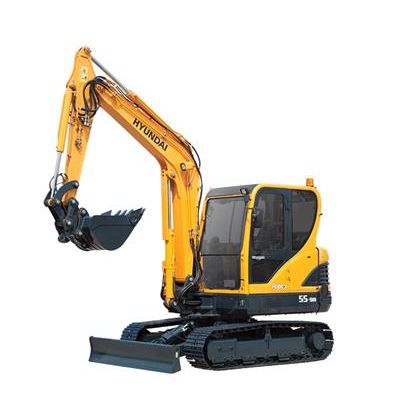

Hyundai Construction - Model R55-9A -Compact Excavators
Operating a 9A series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs. 9A series is designed for maximum performance to keep the operator working productively.
Most popular related searches
Performance
- Yanmar Tier 4 Final Engine
- Boom Swing
- Dozer Blade
- Standard Tail Swing
Convenience
- Monitor
- Suspension Seat
- Ergonomic Controls & Switches
- Cab Entry
Serviceability
- Centralized Lubrication
- Long-life Components
- Easy Access
- Durable Cooler
- ENGINE MODEL: Yanmar 4TNV98C
- NET POWER: 65.1 hp (48.5 kW) at 2,400 rpm
- OPERATING WEIGHT: 5,650 kg (12,460 Ibs)
- BUCKET RANGE: 0.18 m3 (0.24 yd3)
- SWING SPEED: 9.1 rpm
- TRAVEL SPEED (MPH): 4.2 km/hr (2.6 mph)
- MAX. DIGGING DEPTH (FT/IN): 3,820 mm (12 ft 6 in)
- MAX. DIGGING REACH: 6,150 mm (20 ft 2 in)
- TAIL SWING RADIUS (FT/IN): 1,650 mm (5 ft 5 in)
- BUCKET BREAKOUT FORCE: (SAE) 37.7kN (8,490 lbf)
- ARM CROWD FORCE: 2,900 kgf (6,390 lbf)
