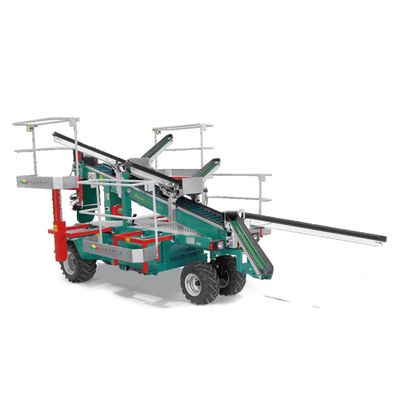

Tecnofruit - Model CF 110 -Compact Machine
Fruit picking machine for larger row distances of 3,60 m / 141 inches to 4,50 m / 177 inches and plant heights to a maximum of 4,00 m / 157 inches. Designed to be multi-purpose “tool”, it has a full standard equipment, including the new automatic trailer CP04 and the air compressor that allow to use 6 to 8 pruning shears. The CF 110 can be employed in many seasonal tasks. Equipped with a 4 cylinder Diesel engine, Stage V, it has a top speed of 9.5 km/h.
The four lateral platforms have generous dimensions (1,38 m / 54 inches x 0,40 m / 15 inches) which allow the pickers maximum freedom of movement. The high quality which distinguishes all the machines of the TECNOFRUIT series and the simplicity in handling them make these machines into ideal partners, also for large companies and many different fields works.
- Engine: Lombardini 4 cyl
- Type: Diesel 24,8 hp / 18,5 Kw
- Front wheels drive: 26×12.00-12” 8 pr
- Front wheels (4WD): 31×15.50-15” 8 pr
- Rear wheels: 31×15.50-15” 8 pr
- Service brake: Footbrake
- Emergency brake/Parking brake: Hydraulic negative
- Diesel tank capacity: 70 lt
- Hydraulic oil tank capacity: 100 lt
- Aux power: 12 V – 30 A
- Air compressor: 650 lt/min
- Speed: 0-9.5 Km/h
- Speed range: 2 + 2 with inversor
- Transmission: Hydrostatic
- Steering control: Orbitrol
- Driving control: Joystick
- Lenght (without bins trailer): 4.900 mm / 193 inches
- Width (min/max): 2.070 mm / 81 inches – 3.470 mm / 135 inches
- Height (min/max): 2.400 / 94 inches – 2.875 mm / 113 inches
- Wheel base: 2.660 mm / 104 inches
- Ground clearance: 200 mm / 7.8 inches
- Tourning radius: 4,00 m / 165 inches
- Weight: 2.355 Kg / 5190 lb
