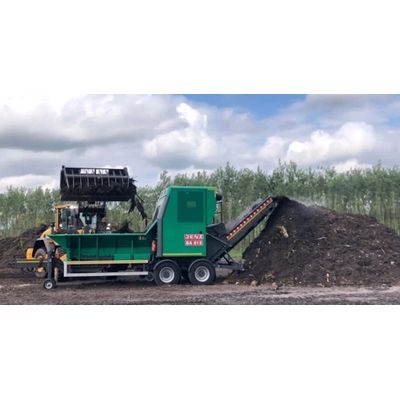

JENZ - Model BA 615 - Compact Shredder for Compost and Biogas
Two-axle chassis with drive via diesel engine. JENZ biomass processors are the ideal choice for companies that value efficiency, safety and convenience. They achieve uniform material quality, are economical in fuel consumption and reduce the burden on drivers. These shredders are also durable with a high tractive force and offer unique flexibility: One rotor for everything.
AGRAR package
Special AGRAR package ex works for processing manure, silage, beet and other alternative biogas substrates. The AGRAR package includes special software for beet processing, additional screens, fixed tools, automatic central lubrication and the hydraulically folding hopper for optimum feeding and processing of biogas substrates.
easy2 CONTROL System
The easy2 machine controller is clearly laid out, can be operated intuitively and offers a number of advantages to simplify everyday work. These include a large touch display with clearly structured menu navigation, driver assistance systems and the easy2CONNECT remote controller.
GFA Draw-in control system
Sensors detect the rotor and intake speed and optimally adapt the parameters. The result is consistently high engine utilisation when processing green waste, biowaste, and bark, and maximum throughput capacity.
DIP Roller Pressure System
Due to the variable pre-load pressure of the upper roller, the shredder can adapt to any material. For example, cut shrubbery requires a higher pressure, while bark is best drawn in without pressure. Thanks to its easy adjustment to respective requirements, the machine works efficiently and achieves a consistent output.
IPS Impact Protection System
The IPS (Impact Protection System) protects the machines and the end material from massive foreign objects, such as stones or iron parts. When the sensors detect an impact, the machine reacts immediately, which prevents consequential damage.
One rotor for everything
Our innovative tooling system permits the use of both free-swinging and stationary tools. Rotor rearrangement is extremely fast and allows adaptation to any material. In addition, full or half tool kits can be run with the same rotor.
CONTROLLER
Mode Selecting System
The machine has three preset shredding modes that can be adjusted depending on the source material. For example, green waste can be assigned a separate mode, which is then called up at the push of a button. This saves time and enables even inexperienced operators to make optimum use of the machine.
JES Standby ModE
The JES (JENZ Energy Saver) mode can shut down the engine to idle at the push of a button if work is interrupted. This stops the conveyor belt and the intake. To continue work, switch back to operation by pressing a button and restart the system.
REMOTE DIAGNOSTICS
To ensure smooth operation of JENZ machines, log data can be transmitted to JENZ on a daily basis. These data help to detect anomalies more quickly and, in the event of an error message, support can be provided quickly and reliably.
EFFICIENCY
Smart HydraulicS
Intelligent hydraulic control allows precise adjustment of the machine to the material and the desired discharge. This ensures high processing quality and maximum efficiency. Diagnostic valves offer easy fault diagnosis - both for the operator and for JENZ Service.
MAINTENANCE
REVERSIBLE FAN
The Cleanfix reversible fan clears the cooler of dust during operation and ensures safe operation, even under difficult dusty conditions.
LED FLOOD LIGHTS
LED flood lights provide high luminosity and illumination, which significantly increase safety when working in the dark.
