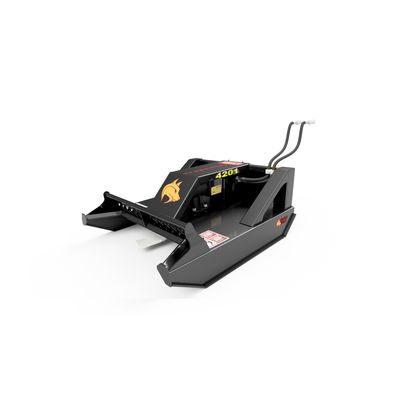

Brush WolfModel 4201 & 4801 LF - Open Front / Compact Series -Compact Utility Loader Brush Cutter

SHARE
The Compact Utility Loader Brush Cutter from Brush Wolf is engineered for precision in demanding environments. This robust machinery showcases the power of larger models while maintaining a compact form, ideal for navigating confined areas. Compatible with a range of equipment, including Vermeer, Toro Dingo, and Bobcat MT-50, it offers versatility through various model options. The cutter features long-lasting updraft steel blades, paired with a premium Eaton® Geroler-style hydraulic motor and a reliable Omni® gearbox for enhanced torque and blade speed. Its ultra-rugged deck frame is constructed from a single piece of heavy-duty steel, providing increased durability and eliminating construction errors. Additional design features include a clean deck to minimize debris, a slotted front shield for visibility and operator protection, and pressure relief valves for motor safeguarding. Brush Wolf ensures longevity through powder-coated finishes and easily accessible parts. Each component, from the seamless welding to the motor protection systems, contributes to a machine that's built to endure the toughest conditions.
Most popular related searches

Don’t let their size fool you; these mighty cutters may be small, but they pack all the power and performance of their larger counterparts. Designed to fit through tight spaces, they are versatile enough to be used anywhere. The 4201 is built to fit all compact utility loaders such as Vermeer, Toro Dingo, Ditch Witch, Bobcat MT-50, and others. The 4801 is compatible with compact utility loaders ranging from small to full-size skid loaders, thanks to its various pickup plate options. Made for long-lasting durability, flexible to be used everywhere.

  • Duty Rating: Compact
  • Cutting Width: 42", 48"
  • Hydraulic Flow Range: 8-25 GPM
  • Max Cutting Diameter: up to 2", up to 3", up to 4"
  • Motor Style: Geroler-style hydraulic motor; right-angle gearbox
Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

Premium Hydraulic Motor

We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Grade-2 Shear Bolt: protects the gearbox and driveline from damage.

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

Clean Deck Design

Our one-piece deck frame construction creates a “clean deck” design that allows material to glide off, preventing unwanted debris buildup. (Think less mess and easier to clean.)

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

Push Bar

Let’s help “feed” the cutter with a welded push bar to knock down taller vegetation and enhance the mowing capabilities.

Slotted Front Shield

Slotted front shield provides increased visibility while protecting the operator from debris.

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

Chain Curtain

Chains hanging from the rear of the cutter prevent debris from being discharged.

Hood

12-gauge steel motor guard protects from damaging impacts. Hinged for easy motor access.

Lift Limit Chain

A lift limit chain has been added to the 4801 for your safety, which prevents the cutter from being lifting too high.

Safety Step

Enhancing safety is our thing, so we added a non-slip, serrated metal step to the 4801 for easy in and out.

Various Pickup Plate Options

We carry all pickup plates so your cutter will be equipped with the exact pickup plate needed for your machine.

Choose Your Color

Black, yellow, or make it your own custom color.

Parts Always Available

Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at www.brushwolf.com/parts or by calling 877-390-9857.

  • PSI cont./int.: 3,000/3,500
  • Deck Thickness: 4201: 10-ga (.135 in); 4801: 7-ga (.188 in)
  • Motor/Gearbox Coupler: Machined steel
  • Motor Protection: Pressure relief valves, GRD-2 shear bolt
  • Blade Carrier Type: 1” GRD-50 plate
  • Blade Rotation: Counterclockwise
  • Blades: (2) 0.5 x 4 in; updraft
  • Hood: 12-ga hinged, motor guard
