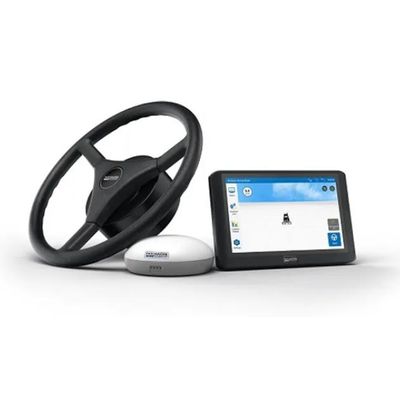

Patchwork - Complete Auto Steer Kit
Complete Auto steer kit that is useful for all farming seasons, it is simple to fit, low cost, fits most tractors and is simple to use. Different GPS options available that are EGNOS, RTK NTRIP or RTK Base/Rover. This system works at low speeds down to 0.36kph with an accuracy of 2.5cm.
Most popular related searches
- 10.1 inch Touch Screen Display
- Modular Design with Extensive Compatibility
- Installation within 30mins
- +/- 2.5cm High Accuracy
- Terrain Compensation
- Straight line and Curved guidance modes
- 0.1m/s Ultra-Low Speed
- Real-Time Display
- SBAS and RTK GPS options
Terminal
- Display: 10.1-inch capacitive touch screen, LED backlight, 1280x800 pixels, LCD>700 nits
- Memory: 2Gb RAM, 8Gb ROM
- External interface: SIM card slot x1, Type-C port x2
- Power supply: 9 V -36 V
- Signals: RF signal, positioning satellite signal, and 4G signal
- Operating temp.: -20°C to +70°C
- Storage temp.: -40°C to +85°C
- IP Rating: IP65
- Relative humidity: 0% to 95%, 40°C (non-condensation)
- Wi-Fi specifications: 2.4 GHz frequency band, BT 5.0
- Frequency range: 2,412 MHz – 2,484 MHz
- Dimensions: 275 x 180 x 40 mm
GNSS Receiver
- Frequency range:
- GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5b
- Receiver Frequency: 20 Hz
- Operating voltage: 9 V –36 V
- Operating current: < 300 mA
- Operating temp.: -20°C to +70°C
- Storage temp.: -40°C to +85°C
- IP rating: IP66
- External interface: TNC dual antenna extension x1
- Dimensions: 162 x 78 mm
Electric Steering Wheel
- Splined sleeve: Multiple models
- Power supply: 12 V or 24 V
- Peak torque: 20 Nm (12 V), 30 Nm (24 V)
- IP rating: IP65
- Wheel diameter: 410 mm
