ShunXin vibrating compost screener for sale
The two-dimensional vibrating screening machine is suitable for compost materials with high humidity and high fiber content screening after the material composting process; The shaker screener has a crank connecting rod forcibly driving screen body. It has a different angle boom suspension structure, facilitated with leather belt drive system.

The screener for compost is driven by the screen box drive device. Its motor is driven by die two-stage belt to reduce the speed and drive the crank linkage mechanism to drive the screen box to make horizontal reciprocating movement. The sieve box is hung on two pairs of booms with different front and rear vertical angles.

The two sets of booms reciprocate around their fixed ends, so that the screen box produces heavy and vertical vibrations while reciprocating, due to the vertical of the two pairs of booms. The angles are not equal, the vertical amplitude of the screen box is different before and after, and the material jumps vertically on the surface while generating a horizontal jump.

The material fed to the feed inlet is quickly distributed over the entire width of the sieve. Therefore, the compost material vtiih smaller particle size under the layer is quickly sieved, and the particles larger than the mesh size can quickly jump toward the exit direction.

Working performance of the vibrating compost screener

• Production capacity: 1.0 - 6.01 / h;
• Supporting power: 4.0 - i5.okW;
• The screen surface is vertically and horizontally vibrated in two dimensions, and the inclination and amplitude are constant;
• The vertical amplitude of the sieve body is not equal, so that tie material produces a two dimensional jump during the screening process and moves to the discharge end;
• ShunXin manufactured compost turner has compact structure and high screening efficiency.

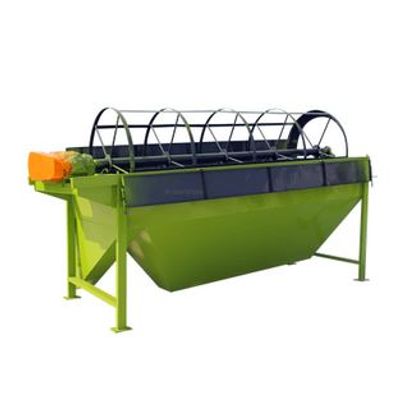

Cylinder screening machine ShunXin for sale
It is suitable for materials with low water content and less fiber impurities after composting; The cylinder screener has a drum type screen structure, powered by geared motor. The roller device is obliquely mounted on the frame, and the motor is connected to the roller device through the coupling through the reducer and driven the roller unit. The material is separated from the top down through the screening cylinder, and the fine grade material passes through the screen hole of the cylindrical working surface. The coarse material is discharged from the lower end of the cylinder.

ShunXin designed cylinder screening machine specifications

• Production capacity: 1.0 - 6.01 / h;
• Supporting power: 5`5"30`okW;
• This screener machine can work in a slow speed and screen materials evenly;
• Compact structure enables the screener work quietly;

Operational requirements for cylinder screener machine
A right way to maintain and inspect the machine can enable you use your screener in a longer time.

• Be careful for the screeners` bearing working temperature. Under normal working conditions, the temperature rise of the bearing should not exceed 40 ° C, and the highest temperature rise should not exceed 70 ° C.
• Before stopping, the feeding should be stopped first, and the motor can be turned off after die screen cylinder is completely discharged.
• After the repair is completed, the installation tools should be removed, and no additional matter is allowed inside or outside die screen cylinder.
• Always pay attention to and timely lubrication of all parts of the equipment to ensure the normal operation of the machine and extend the service life of the equipment.
