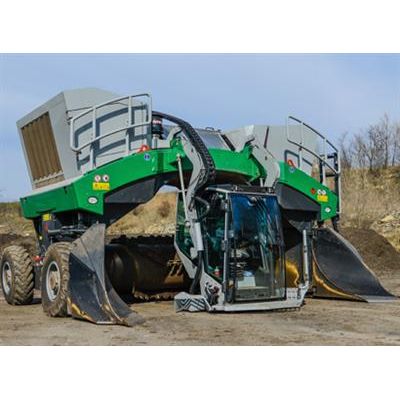

Topturn - Model X Series - Compost Windrow Turners

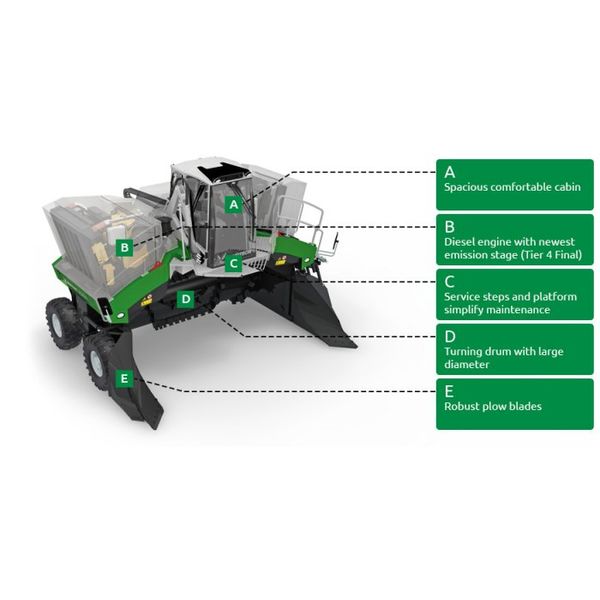

One of the most widely used compost turners in the world. With the new X series we are further extending our position. Inspired by our customers, this third generation of the Topturn offers top performance with comfort and convenience. An even sturdier telescopic frame, high performance hydraulics and generously dimensioned turning drum mean high throughput in all working scenarios. The 242 kW / 329 HP engine meets the latest emissions standards (Tier 4 Final), and the new cooling system keeps everything cool even under heavy loads and high outside temperatures. Further plus points are the larger, more comfortable cabin and new automatic drive for relaxed working, and the hydraulically extendable maintenance platforms for fast, easy maintenance.
- Large-dimensioned turning drum for high throughput and complete mixing
- Wheel drive or Track drive
- Comfortable cabin with more space and new intuitive controls
- Easy maintenance access with ladders and platforms integrated in the body
- Wide application area: Composting of MSW, green waste, biowaste, sewage sludge, treatment of contaminated soils, mixing of ores
DRIVE
Diesel engine: CAT ® C7.1
Power (kW / HP): 205
TURNING DEVICE
Drum diameter: 3‘11“ / 1200 mm
Drum rpm: 0-195
WINDROW DIMENSIONS
Max. windrow width: 14‘9“ 4500 mm
Max. windrow height: 7‘3“ (+1‘3“ extendable) 2200 mm (+380 extendable)
Max. windrow cross-section: up to 55 ft2 / 5.1 m2
TRAVELING SPEEDS (I standard, II optional)
Wheel (mph): I: 0-2.5 II: 0-3.7 mph I: 0-4 II: 0-6 km/h
Track (mph): I: 0-2.5 mph / I: 0-4 km/h

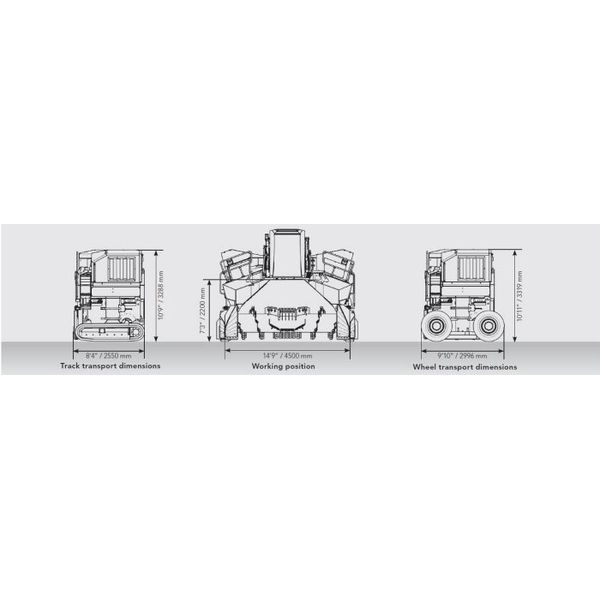

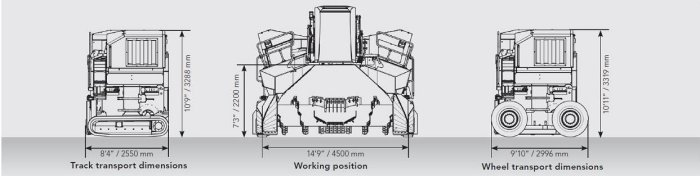

DIMENSIONS L x W x H: Transport dimensions wheel: 16‘2“ x 9‘10“ x 10‘11“ 4917 x 2996 x 3324 mm
Transport dimensions track: 16‘2“ x 8‘4“ x 10‘10“ 4917 x 2550 x 3293 mm
Working dimensions wheel: 14‘9“ x 16‘8“ x 13‘4“ (+1‘3“) 4484 x 5080 x 4056 mm (+380)
Working dimensions track: 13‘6“ x 16‘8“ x 13‘2“ (+1‘3“) 4126 x 5080 x 4025 mm (+380)
WEIGHT
Wheel: ~ 31,800 pounds
Track: ~ 33,000 pounds
THROUGHPUT (dependent on material)
Throughput performance: up to 3900 yd3/h up to 3000 m3/h
OPTIONS
Mixing drum, fast drive, lateral displacement device, scraper bar, protective ventilation, watering device etc.
Topturn X55 Specs
DRIVE
Diesel engine: CAT ® C9 Tier 4 Final/Stage IV or Tier 3/Stage IIIA
Power (kW / HP): 330
TURNING DEVICE
Drum diameter: 3‘11“ / 1200 mm
Drum rpm: 0-195
WINDROW DIMENSIONS
Max. windrow width: 16‘5“ or 17‘5“ 5000 or 5300 mm (others on request)
Max. windrow height: 7‘3“ / 2200 mm
Max. windrow cross-section: up to 67 ft2 / up to 6.2 m2
TRAVELLING SPEEDS (I standard, II optional)
Wheel (mph): I: 0-2.5 II:0-4.4 mph I: 0-4 II: 0-6 km/h
Track (mph): I: 0-2.5 mph / I: 0-4 km/h

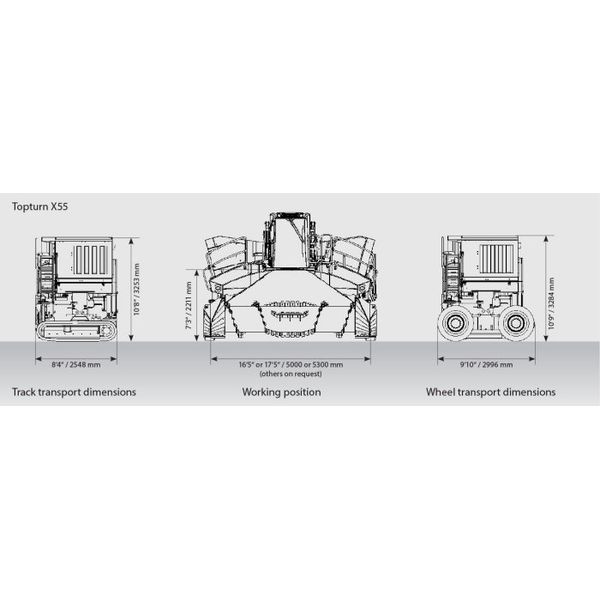

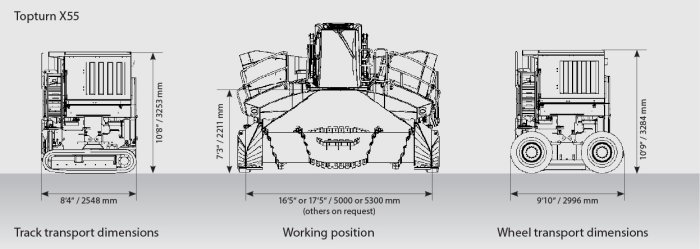

DIMENSIONS L x W x H: Transport dimensions wheel: 17‘11“ x 9‘10“ x 10‘9“ / 5457 x 2996 x 3284 mm
Transport dimensions track: 17‘11“ x 8‘4“ x 10‘8“ / 5457 x 2548 x 3253 mm
Working dimensions wheel: 14‘1“ x 17‘7“ x 13‘2“ (+1‘3“) 4300 x 5350 x 4025 mm (+380)
Working dimensions track: 13‘1“ x 17‘7“ x 13‘1“ (+1‘3“) 3980 x 5350 x 4000 mm (+380)
WEIGHT
Wheel: ~ 35,200 pounds
Track: ~ 36,400 pounds
THROUGHPUT (dependent on material)
Throughput performance: up to 5200 yrd3/h / up to 4000 m3/h
OPTIONS
Mixing drum, fast drive, lateral displacement device, scraper, bar protective ventilation, watering device etc.
Topturn X63 Specs
DRIVE
Diesel engine: CAT ® C13 Tier 4 Final/Stage IV or Tier 3/Stage IIIAa
Power (kW / HP): 390
TURNING DEVICE
Drum diameter: 4‘7“ / 1400 mm
Drum rpm: 0-195
WINDROW DIMENSIONS
Max. windrow width: 18‘8“ 5700 mm
Max. windrow height: 8‘6“ / 2600 mm
Max. windrow cross-section: up to 87 ft2 / up to 8.1 m2
TRAVELLING SPEEDS (I standard, II optional)
Wheel (mph): I: 0-2.5 II: 0-3.7 mph I: 0-4 II: 0-6 km/h
Track (mph): I: 0-2.5 mph / I: 0-4 km/h
DIMENSIONS L x W x H: Transport dimensions wheel: 20‘2“ x 9‘10“ x 11‘11“ 6155 x 2996 x 3635 mm
Transport dimensions track: 20‘2“ x 8‘4“ x 11‘10“ 6155 x 2548 x 3607 mm
Working dimensions wheel: 14‘1“ x 20‘0“ x 14‘7“ (+1‘3“) 4303 x 6091 x 4435 mm (+380)
Working dimensions track: 13‘0“ x 19‘8“ x 14‘5“ (+1‘3“) 3973 x 6003 x 4400 mm (+380)
WEIGHT
Wheel: ~ 39,700 pounds
Track: ~ 41,200 pounds
THROUGHPUT (dependent on material)
Throughput performance: up to 5800 yd3/h up to 4500 m3/h
OPTIONS
Mixing drum, fast drive, lateral displacement device, scraper, bar protective ventilation, watering device etc.
Topturn X67 Specs
DRIVE
Diesel engine: CAT ® C13 Tier 4 Final/Stage IV or Tier 3/Stage IIIA
Power (kW / HP): 446
TURNING DEVICE
Drum diameter: 5‘9“ / 1750 mm
Drum rpm: 0-160
WINDROW DIMENSIONS
Max. windrow width: 21‘0“ 6400 mm (others on request)
Max. windrow height: 9‘6“ / 2900 mm
Max. windrow cross-section: up to 110 ft2 / up to 10.2 m2
TRAVELLING SPEEDS (I standard, II optional)
Wheel (mph): Track (mph): I: 0-2.5 / I: 0-4 km/h
DIMENSIONS L x W x H: Transport dimensions wheel: Transport dimensions track: 22‘2“ x 9‘10“ x 11‘8“ 6580 x 3000 x 3560 mm
Working dimensions wheel: Working dimensions track: 15‘6“ x 22‘2“ x 16‘4“ (+1‘3“) 4720 x 6750 x 4970 mm (+380)mm
WEIGHT
Wheel: Track: ~ 47,000 pounds
THROUGHPUT (dependent on material)
Throughput performance: up to 6540 yd3/h / up to 5000 m3/h
OPTIONS
Mixing drum, fast drive, lateral displacement device, scraper, bar protective ventilation, watering device etc.
