Global Composting Solutions Ltd (HotRot)

HotrotModel 3518 -Composting Unit

SHARE

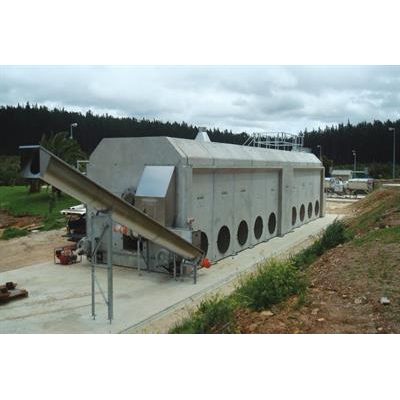

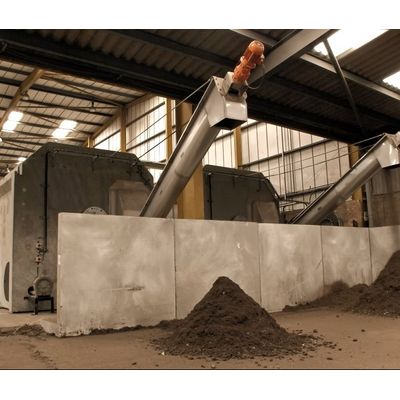

The HotRot 3518 is the largest single unit and is constructed from pre-cast concrete or pre-fabricated steel sections. Designed to be used by larger municipalities and sewage treatment plants, multiple units can process any quantity of organic waste but HotRot generally recommends plant of less than 180tpd to minimise transportation distances and local impacts. The HotRot 3518 is designed for outdoor operation; additional insulation (winterisation) is available for extreme climates. Locating any feed hoppers within a waste reception building with the HotRot units outside would be normal. Product conveyors can discharge into a storage building or open temporary storage bunkers.

Most popular related searches
TYPICAL APPLICATIONS

The HotRot 3518 is the largest of Global Composting Solution’s in-vessel composting units. Designed for larger municipalities and sewage treatment plants.

FEED SYSTEM

Feed hoppers enable 24/7 unattended operation. Ancillary equipment such as augers, conveyors, biofilters and dewatering units can be supplied as part of a turnkey installation.

DESIGN LIFE *

15 years.

*Excluding maintenance and wear items. Design and specifications may change without notice at any time due to ongoing research & development.

  • Length overall 21.97m (72’ 1”)
  • Width overall 4.92m (16’ 2”)
  • Height overall 4.25m (13’ 11”)
  • Main drive 37.0KWH three-phase
  • Energy requirement 200-250 KWH/day
  • Nominal capacity 9.5-15.0 tonnes per day
