Dalen - Model 1294 - Connection Frame

• Flexible connection of many Dalen products
• Integrated connection for most tractor linkages
• Enables the same product with different linkage
• Can be used on several Dalen products - cheaper solution
• One, two or 2.4 metre wide – ideal, also for wide cargo

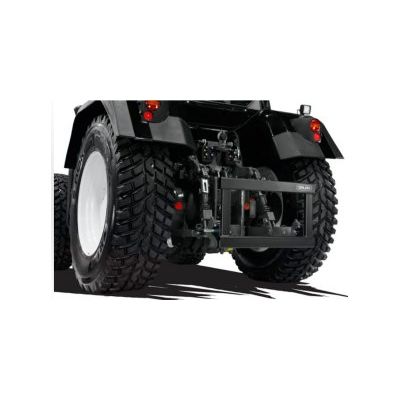

Dalen Connection frame is used for connecting a lot of the Dalen equipment to the tractor’s front- or rear loader. One frame can be used on many Dalen products: pallet fork, hydraulic pallet fork, sand spreaders, round bale equipment, timber claw, universal claw sweepers and firewood processors.

When using supplementary equipment, the same connection frame can be used, resulting in a cheaper investment for the customer. We are continuously developing new products which are adapted to the Dalen connection frame. This type of frame solution is very flexible, since different connection frames can be used for the same product. If you are sharing the equipment with someone who is using other types of tractor-couplings, you only need one connection frame each in order to use the same equipment. Standard width on the frame is one meter.

Dalen also delivers a wide connection frame (2.0 meter) and a lifting frame (2.4 meter). The lifting frame has an adjustable connection point and can consequently be used on large tractors and still maintain the lifting height on small tractors. These frames can be used with pallet forks (with universal claw) and round bale tine.

Technical data - standard frame

• Width 100 cm
• Loading capacity max 12000 Nm
• Weight, from 28 kg

Technical data - wide frame

• Width 200 cm
• Loading capacity    max 12000 Nm
• Weight, from 57 kg

 Technical data - lifting frame

• Width 240 cm
• Linkage adjustable
• Loading capacity  max 12000 Nm
• Weight 97 kg
