FECH - Model TUF-20 -Cow Tie Stall Equipment
The TUF-20 Cow Tie Stall Equipment is designed for use in tethered barns where cows are housed in individual cubicles. These tie stalls can be arranged in either a single row for fewer than 16 animals or in two rows with heads facing either each other (head-to-head) or away (tail-to-tail). The system ensures correct feeding and watering, reduces the influence of aggressive animals, and allows for better health monitoring. Each stall must be a minimum of 1.20 meters wide and 1.85 to 1.90 meters long, constructed from steel St3 with hot-dip galvanized corrosion protection according to GOST 9.307-89 standards. The equipment includes components like steel stanchions, swivel tie beams connected by bolts, and a manual release mechanism for group release. Props are cemented into the floor to a depth of 300 mm. The design ensures cows can stand upright and lie down comfortably, contributing to their overall health and welfare. Tie Stalls TUF-20 can be ordered in Estonia from FechTech.

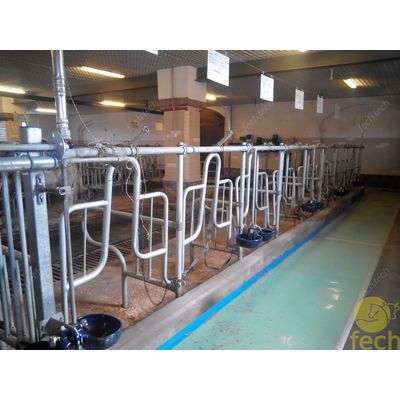

Tie Stalls TUF-20 is used in tied barns.
The tie stalls may be constructed in a single row if the number of animals is 16 or less, or in two rows if the number is more, either with the heads of animals facing outside, the so-called tail-to-tail arrangement or with the heads of animals facing each other, the so-called head-to-head arrangement.
Tethered housing has certain positive aspects:
- Each cow is kept in its own cubicle;
- Correct feeding, watering;
- the animal spends more time lying down than when it is tied
the animal lies longer than when it is not tethered; - the influence of the more aggressive animals is considerably reduced
- aggressive animals;
- better monitoring of the health status of the animal
- Better health monitoring and care
- Stall width: minimum 1.20m or loin height *0.9
- Stall length: 1.85-1.90m or diagonal body length *0.92 + 30cm
- Animals must be able to stand upright;
- Separating arcs to match the required width of the cubicles or apply separating belts;
- Chain or strap approx. 80 cm long when tied to overhead pipe
- The stall equipment is made of steel St3. Corrosion protection is hot-dip galvanized according to GOST 9.307-89,S=80-140 microns.
- Stanchions are made of a pipe ø57×3,5, swivel tying beam is made of a set of pipe ø48×3,5 interconnected by bolts.
- The props are assembled by concreting into the floor to a depth of 300 mm.
- The swivel tie bar is attached to the uprights by means of clamps and must be freely rotated by hand.
- The group release is carried out by means of a manual release mechanism.
- You can buy and order the Tie Stalls TUF-20 leash in Estonia from us
