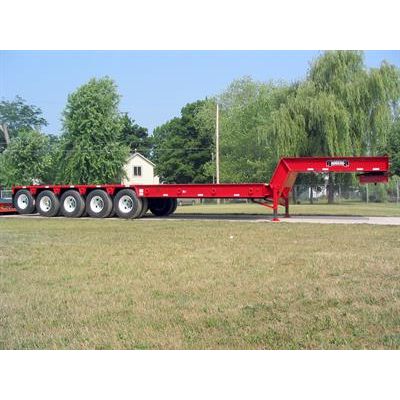

Rogers - Model 100-Ton FG100L-5X - Crane Loading Specialized Trailers
This fixed gooseneck trailer is designed to carry a crane-loaded concentrated load. The trailer features a 120,000 lb. capacity spring/walking beam suspension and a 5th axle air lift with 30,000 lb. capacity air ride suspension.
Most popular related searches
- Trailer Use Crane Loading
- Tons 100
- Capacity 100.0-ton (90.7-tonnes)
- Deck Style Platform
- Deck Length 35`-0" (10.7-meter)
- Deck Height LD 576" (14.6-meter)
- Deck Width 10`-0" (3.0-meter)
- Load Con Weight 200,000-pounds (90,718 kilograms)
- Load Con Length 19`-0" (5.8-meter)
- Axles 5 axles
- Suspension 120,000 lb. capacity four axle severe-duty spring walking beam
- Axle Type 30,000 lbs. capacity with oil-bathed bearings
- Tires 315/80R22.5(L) low-profile tubeless radial
- Wheels 22.5 x 9.00 10-hole steel disc
- Brakes 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
