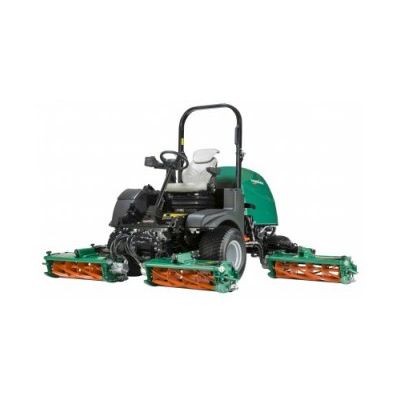

Ransomes - Model MP495 -Cylinder Mower
The Ransomes MP series has been developed from the ground up as a new generation of adaptable and practical wide area mowers. Delivering productivity on all fronts, the Ransomes MP Series is highly manoeuvrable, easy to transport, engineered for reduced downtime and powered to put its width to work in all conditions. The MP495 features a direct injection 49hp Kubota Diesel engine, complying with Stage IIIA and avoiding complex emission control. Its mechanical over hydraulic transmission system and electronic lift lower controls makes this a practical, high performing mower that gives an effortless, top quality finish season after season.
Engine
Type Kubota V2403-M-DI-E3B 4-cyl, liquid-cooled diesel
Horsepower 48.9 hp @ 2700 rpm
Emissions Level EU Stage IIIA - (EPA Tier 4 Interim)
Cooling System Side-by-side radiator/hydraulic oil cooler; pressurized; 8 qt. capacity, 8.5 fins per inch
Fuel Capacity 20.4 gal
Electrical System 12-volt, input/output controller. 45/60 amp alternator. Overload protection with automotive type fuses.
Cutting Units
5 x Type Sport 200: 7.8" Diameter, 30" Wide 6,8 and 11 Knife Floating; 6 Knife Fixed
Magna 250: 10" Diameter, 30" Wide 4,6 and 8 Knife Fixed
Floating Head Verticut
Rollers 3" Diameter Greasable
Unit Lift/ Lower Fingertip operated joysticks for unit lift/lower, cross cut position, hydraulic powered lower for side slopes
Weight Transfer On demand electrically operated hydraulic weight transfer system
Height of Cut Sport 200 Floating: 0.5-1.41", Thin Blade 0.35-1.26", High Height Kit 0.5-2.4"
Sport 200 Fixed: 0.5-3.5"
Magna 250 Fixed: 0.5-2.4", Tool or hand wheel adjust
Overall Cutting Width 138"
Cutting Capacity 9.3 acres/hr At 7.5mph- (10% allowance for overlap)
Traction and Drive
Traction System Hydrostatic closed loop parallel cross series SureTrac system; variable displacement piston pump; front high torque fixed displacement piston wheel motors; full time auto 4wd fwd, on demand in reverse.
Cutting Unit Drive Direct drive, bi-directional with relief valve protection in both directions
Hydraulic System 50.2 litre capacity reservoir, Parker EO-3 technology, 10 micron remote charge filtration, suction screen at tank, oil cooler side by side radiator, diagnostic test ports.
Hydraulic Cooling Side by side pressurised hydraulic oil cooler
Tires, Brakes, and Steering
Front Tires 26 x 12-12 tubeless 8 ply
Rear Tires 20 x 10-8 tubeless 6 ply
Service Brakes Dynamic through traction system
Parking Brake Wet parking brakes integrated into wheel motors
Steering Q-Amp® Variable rate, hydrostatic powered equal displacement cylinder to rear wheels
Speed
Mowing 7.5mph
Transport 15.5 mph
Reverse 4 mph
Weight and Dimensions
Weight 4012 lbs; 4462 lbs with cab
Length 122" with Magna Cutting Units
Height 83 in. ROPS up; 67 in. ROPS & Units Down
Transport Width 75" with Magna Cutting Units at 1.2" height of cut
Working Width 148" Magna Units Down
