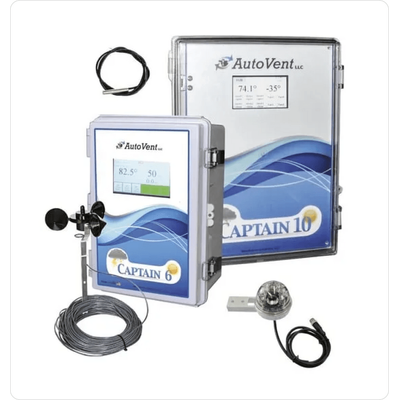

AutoVent Captain - Dairy Fan Controller

• Six or ten equipment channels
• Humidity Sensor uses THI for optimal control
• Switches fans off when it’s windy outside to save electricity
• The warmer the temperature the faster the variable speed fan spins
• Rain sensor options.
• Humidity Compensated Control
• Touchscreen interface, Easy to change settings
• Fahrenheit and Celsius display
• Individual adjustable temperature set-points for each stage
• Six or ten relay outputs 10 amp
• Rugged enclosure (corrosion resistant and water-resistant)

Note: Each independent vent uses 2 switches. Each independent fan or heater uses 1 switch. This means you can have any combination as long as it doesn’t use more than six or ten switches.

• 1 temperature sensor
• 120/240 input power
• 6 or 10 bank output
• (6) or (10) 7.5 AMP SPDT outputs
• Controls up to 20 variable speed drives per 0-10 V bank
• Humidity sensor for THI or Amp Sensor for Smart overload protection
• Optional Rain Sensors

Farmers operate their livestock buildings year around. This means manually operated livestock curtains and fans require lots of attention if operated for the animal`s best performance.

Eliminate manual cranking curtains and switching breakers with AutoVent Captain environmental controllers for livestock buildings and barns.

Give your dairy cows, beef cows, and other livestock the automatic ventilation they deserve.

The Captain controls are a good temperature and rain based environmental controller for curtains. They don`t do wind direction and are considered our base-level livestock controller.
For a complete weather station barn controller, check out the KVT-400.
