The Utile Engineering Co. Ltd.

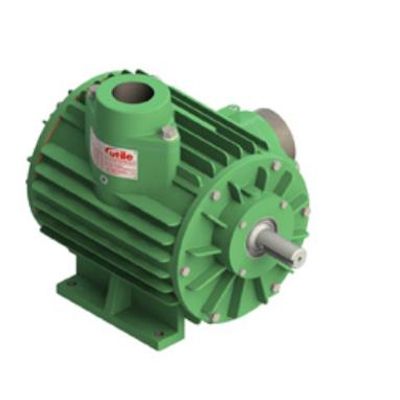

Utile - Model MPD100-300 Pump -Dairy Vacuum Pump
The cylinders are fine bored to give maximum life to the sliding vanes, and the deep fins on the castings enhance cool running. The vanes are manufactured from high grade carbon to provide maximum design life with quiet, trouble free running. The bearings are sealed for life requiring no maintenance and the seal arrangement ensures full protection throughout the life of the machine.
Most popular related searches
- Dry Running
- Vibration-Free Running
- Low Noise Levels
- Easy Maintenance
- Long Life
- High Efficiency
DESIGN
- Rotary Sliding Vane
- Positive Displacement
- Air Cooled
- Carbon Vanes
- Fine Bored Cylinder – for extended blade life
- Blade Measurement – through inspection port in cylinder
ARRANGEMENT
- Bareshaft
- Base Plate Mounted – vee belt driven
- Flanged Inlet / Outlet connections
- Exhaust Silencer
- Suitable for variable Speed Drive
APPLICATIONS
- Dairy Vacuum
- Pressure: to 1725 mbar
- Flowrate: 290 – 637 m³/hr
- Vacuum: to 381 mm Hg
