DalenModel 2094 -Pallet handling fork extension

SHARE

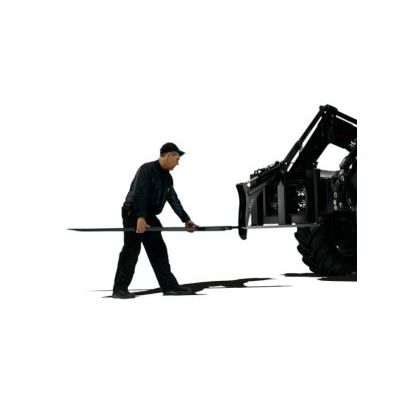

Farm tractors are more and more common on constructions sitessites with a lot of material transportation. In situastions like this, the increased loading capacity of the 2094 is highly appreciated. The fork extensions fits all Dalen forks, the 112, 98 and 78 cm forks. They have the same standard shape and are easily pushed onto the forks, and easily removed when needed. The low weight makes them easy to handle, and with a height of 3-6 cm you can still move materials. The two metre extensions makes it possible to move two pallets at the same time, and the tapered shape makes it easier to enter the pallet openings. They allow a greater range of work, and capacity when loading and unloading pallets. They also make it easier to position pallets on locations that are difficult to reach with standard forks. In many cases the fork extensions will help you make more efficient use of your storage space, and with the 2094 you can even load trailers from one side.

Most popular related searches

You have probably experienced it many times. How annoying it is to leave the second pallet behind? Our fork extentions help you to be more efficient when handling pallets.

  • Greater work range during loading and unloading
  • Fits the Dalen pallet fork – all lengths
  • Enough space to move two pallets in one operation
  • Low height - ideal for handling materials
  • Low weight - easy handling

Loading ability

The fork extention has the following load capacity, per fork: 50 cm from the fork upright: 1000 kg, 100 cm from the fork upright: 500 kg, 150 cm from the fork upright: 333 kg and 200 cm from the fork upright: 250 kg.

Models

2094 / FORK EXTENTION / 25 kg
200 cm / fits all Dalen forks / one pc

  • Length 200 cm
  • Height, min 3 cm
  • Height, max 6 cm
  • Weight per pc 25 kg
