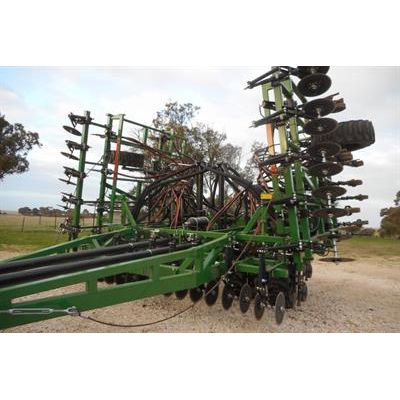

Ausplow - Model D300-36 -DBS Auseeder

SHARE

The D-300 Series DBS Auseeders are available in 11 models. The 300mm (12") tine spaced Auseeders have a transport width ranging from 6.50m (21`04") to 7.96m (26`01") with working widths from 9.60m (31`06") to 18.20m (60`).

Most popular related searches
tine spacings
tine
coulter plow
  • Dig Width (metres): 10.80
  • Dig Width (feet): 35` 05"
  • Number of tines: 36
  • Tine spacing (mm): 300
  • Tine spacing (inches): 12
  • Number of rows: 3
  • Underframe clearance (mm): 730
  • Transport width (metres): 6.50
  • Transport width (feet): 21` 04"
  • Transport height (metres): 4.17
  • Transport height (feet): 13` 08"
  • Recommended engine power (Kw): 188
  • Recommended engine power (Hp): 252
  • Max work depth (mm): 230
  • Number of wheels: 6
  • Tyres: 385/65R 22.5
  • Frame sections: 3
  • Frame tilt modules: (N/A)
  • Weight on drawbar - working (Kg): (N/A)
  • Weight on drawbar - transport (Kg): (N/A)
  • Approximate weight base (Kg): 7700
  • Hose and liquid kit weight (Kg): 650
  • Coulters weight (Kg): 1000
  • Total maximum weight (Kg) (Approx): 9350
