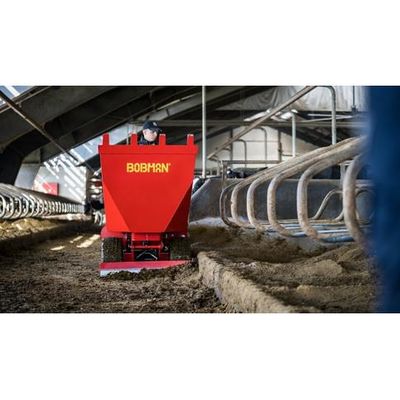

Bobman Multiload - Deep-Bed Spreader
A time-saving and reliable deep-bed spreader with vertical auger and conveyor belt. You can use the spreader as a small feed mixer cart. The spreader is suitable for medium and large crews and can be supplied with either a diesel engine or an electric motor.
Why choose Bobman Multiload
Diesel
For the farmer with a large herd, a Bobman Multiload with a diesel engine and with a fuel tank of 5 liters, is the optimal choice. This gives the machine an operating time of 180 minutes, which makes it possible to perform the work in one strecth. The engine has the well-known driving force which provides a solid and robust process.
Electric
For the farmer with a smaller herd, the optimal choice would be a Bobman Multiload with battery. Depending on the size of the stables, you can chose between two batteries with an operating time of 20 minutes or 50 minutes. Not only do the machines make the execution of the working progress more efficient, but by choosing a engine with battery you also get a more quiet and more environmentally friendly machine.
- Can be equipped with a hydraulic self-loading litter box.
- the volume of the draft box is 0.8 m3
- The ideal solution for larger herds.
- Can be used to add different bedding materials.
- Can be equipped with a manure scraper.
- Can also be used as a smaller feeding mixer.
- Simpelifies the process of cleaning and maintenance work.
- Make the execution of the work more manageable and simple.
- With bedding dispenser and grooming equipment clean the areas by brushing the bed stalls and spreads a fresh layer of the chosen bedding in one pass.
- Reduces cell count, improves hygiene in the stalls and prevents diseases.
- Increases the cattle`s well-being, which results of an improved quality of the milk!
RED:
WHEEL DRIVE: :
- 3WD: x:
- DIESEL: :
- Engine: Hatz 10 hk
- Fuel type: Diesel
- Fuel tank: 5 L
- Operating time: 180 min
- Speed: 8 km/h
- Noise level: 96 db
- ELEKTRIC:
- Battery - Lithium: 4x 12,8v 120 amp
- Engine: 4 KW:
- Volt: 51,2 V:
- Amper: 480 Ah:
- Watt hour: 6144 Wh:
- Operating time : 90 min :
- Speed: 10 km/t
- Noise level: 61 db
OTHER: :
- Bedding material: Manure fiber, peat, lime, disinfectant powder or a mixture of straw, lime and water
- Loading: Self-loading
- Hopper capacity: 500 L - 700 L
- Spreading distance: 50 cm - 200 cm
- Scraper width: 1 m
- Width: 1,1 m
- Length: 2,5 m
- Height: 1,6 m
- Weight: 600 kg
- Turning diameter: 1,6 cm
- Ground clearance: 20 cm
