Brute Force ConceptModel HDP 1000 -Dense Phase Pressure System

SHARE

The HDP 1000 Brute Force Concept Pressure Conveying System is a dense phase, high pressure, low to medium velocity, batch conveying system. It is generally used for conveying medium to high density, heat sensitive, semi-abrasive and/or abrasive materials over shorter distances. Examples include silica sand, plastic pellets, salt, quartz, whole grain, corn, oats and barley.

Most popular related searches

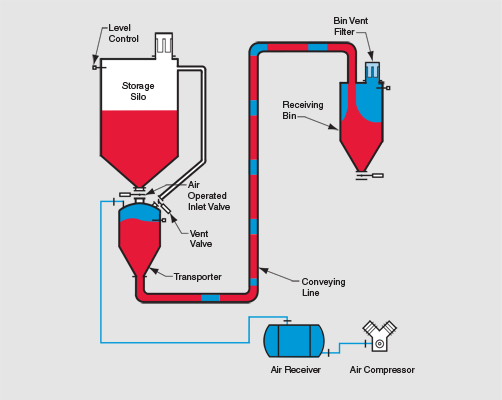

Typical conveying velocities are generally about 1000 feet per minute (5 m/sec) and the conveying pressure up to 60 PSIG (4 barg). A pressure vessel is used to feed material into the conveying line and the air supply, up to 100 PSIG (7 barg), is supplied from a high pressure air compressor.
Watch the HDP 1000 Brute Force Concept Pressure Conveying System in operation.
