No matter what your needs are, our HIGH CAB electric truck models can be configured for virtually any application in recycling, construction, distribution, forestry and agricultural logistics. This means you can individually put together your chassis, wheelbase, cabin and battery capacity according to your individual route profiles, desired usage intervals, ranges and bodies.

Battery Set 750

Installed battery capacity : 763 kWh
Usable battery capacity (85% of the installed battery capacity is released as usable battery capacity) : 648 kWh
Charging time with Type 2 AC 44kW (100% SoC) : 16.3 hours
Charging time with CCS Type 2 150kW (10-80% SoC) : 3 hours
Charging time with CCS Type 2 350kW (10-80% SoC) : 1.3 hours
Range

Example: HC Logistics (116 kWh/100 km) without trailer : up to 550 km
Example: HC Logistics (124 kWh/100 km) with trailer . : up to 515 km

Weight batteries : 4`280kg

Battery Set 900

Installed battery capacity : 870kWh
Usable battery capacity (85% of the installed battery capacity is released as usable battery capacity) : 739 kWh
Charging time with Type 2 AC 44kW (100% SoC) : 18.7 hours
Charging time with CCS Type 2 150kW (10-80% SoC) : 3.5 hours
Charging time with CCS Type 2 350kW (10-80% SoC) : 1.5 hours
Range

Example: HC Logistics (116 kWh/100 km) without trailer : up to 660 km
Example: HC Logistics (124 kWh/100 km) with trailer : up to 615 km

Weight batteries : 5`440kg

Battery Set 1000

Installed battery capacity : 1`017 kWh
Usable battery capacity (85% of the installed battery capacity is released as usable battery capacity) : 864 kWh
Charging time with Type 2 AC 44kW (100% SoC) : 21.8 hours
Charging time with CCS Type 2 150kW (10-80% SoC) : 4 hours
Charging time with CCS Type 2 350kW (10-80% SoC) : 1.7 hours
Range

Example: HC Logistics (116 kWh/100 km) without trailer : up to 730 km
Example: HC Logistics (124 kWh/100 km) with trailer : up to 685 km

Weight batteries : 5`620kg

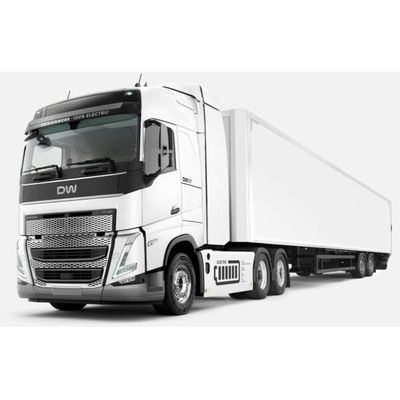

DesignWerk - Model HIGH CAB -Electric Truck For Long Distances

Technical Data
