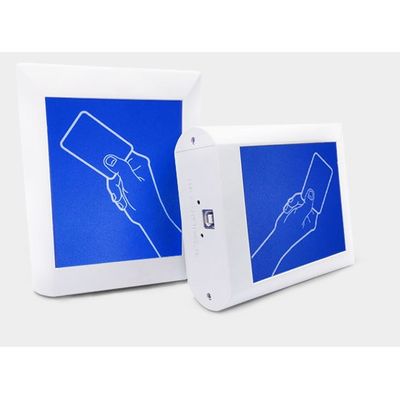

Desktop RFID Card Reader
Desktop RFID card reader produced by GS Software is used to read UNIQUE transponder codes. Communication between the reader, the computer and its power supply takes place via a USB port. After connecting to the computer, the reader is automatically installed in the system as a virtual COM serial port. Each time you put the transponder close to the reader, its code is read. The readout is indicated by a short sound signal and a red diode flashing. After the transporter has been put close, the code is sent to the computer only once.

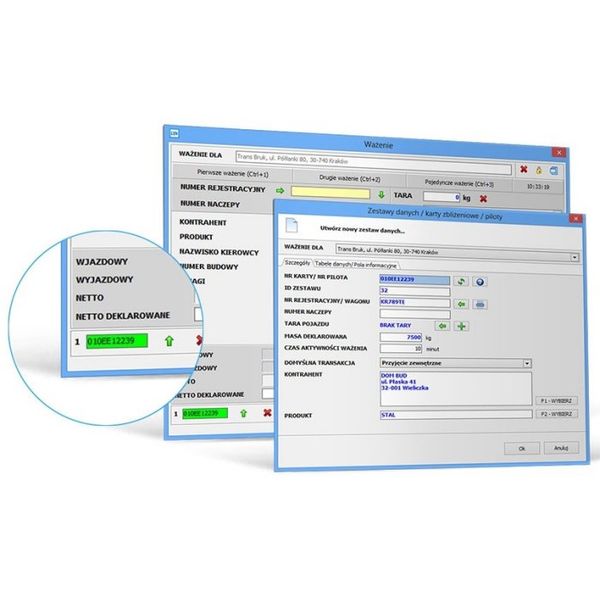

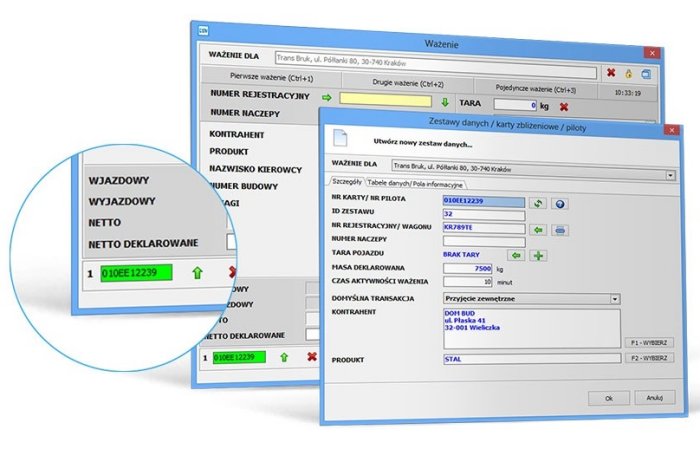

The reader cooperates with the GSW weighing software provided by our company. The card reader can be used to create data sets assigned to RFID tags received by drivers.
- durable housing made of ABS
- signalling diodes
- usb connector
- transponder readout is indicated by a sound signal and diode lighting
- cooperation with Unique 125 KHz standard proximity cards
Category: Parameter
USB:
- Accordance: USB 1.0/1.1
- Compatibility: USB 2.0, 3.0
- Connector: USB type A, B
Characteristic:
- Signals LEDs: Yes
- Sound signal: Yes
- Effective distance to read transponder: A few centimeters
- Power Supply:
- Power type: from the USB port
Data format:
- Output data format: constant
Operating Conditions:
- Operating temperature: Od - 10 do 50 C
- Storage temperature: OD -25 do 70C
- Ambient Relative Humidity: 5 to 95RH
- IP Rating: IP40
Mechanical Characteristics:
- Case material: ABS (UL 94 HB)
- Dimensions: 150x120x42,8mm
- Weight: 0,20 kg
