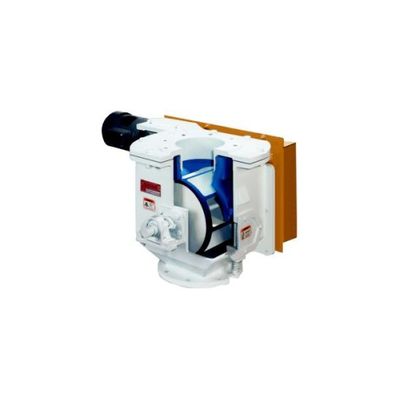

Detroit - Rotary Seal Feeders
Especially suited for abrasive and high temperature materials. Detroit Rotary Seal Feeders are normally installed in a vertical position. However, they may be installed at any angle up to 35 degrees from the vertical, provided they are orientated so that the rotor shaft remains in a horizontal plane. Please advise if the feeder is to be installed other than vertically.
Most popular related searches
- All cast iron construction
- Spring loaded tension bolts maintain a tight air seal in the rotor assembly
- Rotor has generous sized rotor pockets
- Removal of end cover plate permits access to rotor and rotor sealing assembly for easy maintenance
- Access openings are provided on the feeders for internal inspection
- Heavy-duty packing glands prevent gas or material leakage at the rotor shaft
- High-temperature packing
- Externally mounted, heavy-duty, self-aligning pillow block bearings
- Shear pin assembly located on the driven sprocket of the rotor shaft protects the drive mechanism against feeder jamming from foreign material
- A heavy metal guard with ready access to the drive
- Factory assembled, tested and shipped as a complete unit ready for installation
- Chain driven by a single reduction, right angle worm gear, totally enclosed, fan cooled motor
- Standard Capacity Sizes from 6" through 10"
- High Capacity Sizes from 10" thru 14"
