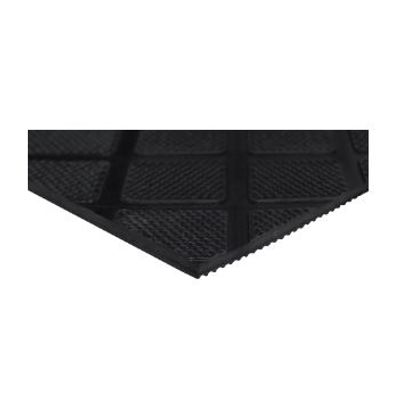

Red Barn - Diamond Traction Mat/Roll (3/4" Thick)
The Diamond Traction mat/roll by Red Barn is designed with an SBR rubber construction reinforced with nylon insert, ideal for high-traffic areas requiring durable, slip-resistant flooring. The product features a diamond traction surface texture to enhance grip while the bottom side varies with a flat texture for mats and a ribbed texture for rolls. Available in mat size of 4' x 6' or roll widths of 4', 5', 6' with lengths up to 100', the material maintains a thickness of 3/4-inch (18mm) with tolerance limits of +/- 1/16-inch (1.5mm) in thickness and +/- 1/8-inch (3mm) in length/width. Each unit weighs approximately 108 lbs, equating to about 4.10 lbs per square foot. Designed for heavy-duty applications like equine and dairy stalls, wash bays, and other high-demand areas, these mats and rolls provide reliable performance and safety. The recommended pallet quantity is 40 mats for bulk installations. Installation guides and warranty details are available to ensure proper and sustained use of the product.
The diamond pattern on these rubber mats or rolls give slip-resistant footing and comfort as the cows move through the dairy for milking. Mats or rolls can be used in parallel, herringbone and inline systems. Interlocking mats can be custom cut to fit for any rotary.
- Nylon insert minimizes elongation and enhances durability
- Mats are easier to install in smaller areas.
- Mats can be interlocked for a tighter fit
- Rolls installed in alleys have fewer seams and minimize cleaning equipment snags
Mat or Roll
- Construction: SBR rubber with nylon insert
- Surface Texture: Diamond traction
- Bottom Texture: Mat – Flat; Roll – Ribbed
- Mat Size: 4′ x 6′
- Roll Width: 4′, 5′, 6′
- Roll Length: 100′
- Thickness: 3/4″ (18mm)
- Thickness Tolerance: +/- 1/16″ (1.5mm)
- Length/Width Tolerance: +/- 1/8″ (3mm)
- Weight: 108 lbs or 4.10 lb/sqft
- Pallet Qty: 40 mats
