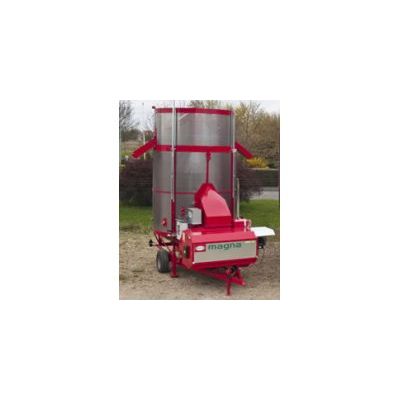

OPICO - Model 1200QF - 12 Ton -Diesel Grain Dryer
The OPICO range of Magna dryers are specifically designed with UK farmers` crops and needs in mind. The 1200QF provides efficient, clean, diesel fired drying and ease of transport. Both models use a large cross-flow centrifugal fan which is quiet and powerful. The Magna range has all the benefits of true re-circulation, better sample, improved hectolitre weight and ease of management The Eco-Flo diesel burner gives a semi-indirect burn to ensure it is the most environmentally friendly batch dryer yet. At the same time the Magna`s multi-tiled "heat-exchanger" retains and builds up heat to give super efficient drying.
- 12 ton approximate holding capacity
- 6 ton per hour throughput
- Quiet Fan (74Db)
- Drive: PTO / Electric
- Optional: Power Pack
Stainless steel perforated screens, 1.5mm on the outside and 2.5mm on the inner plenum providing maximum airflow without compromise (particularly important when drying rape). Wind up screens and a winch-over discharge head for fast and simple set up from transport to working position. The pressure at which the centrifugal fans work ensures that the air produced is driven through even the densest and wettest crops. A grain sampler comes as standard. Heavy duty bevel gearbox drives the 368mm (14½") main auger. The auger and gearbox assembly is mounted on a 15mm base plate which gives strength and durability to the bottom bin.
- Diesel Grain Dryer Features
- Push Button Self Contained Controls
- Duax Heat Core
- Large Centrifugal Fans
- Efficient Low Level Burner
- Heavy Duty Agitator
- High Capacity Augers
- Stainless Steel Screens
- Drying capacity (21-16%)* 6 t/hr
- Holding capacity 12t - 16m³
- Height - working position / Sky-Vac 5.7m (18’8”) / 6.2m (20’4”)
- Height - transport position / Sky-Vac 4.5m (14’9”)
- Width 2.55m (8’4”)
- Length - working position 8.75m (28’8”)
- Length - transport position 6.2m (24’4”)
- Weight - empty 3250 kgs
- Grain wall thickness 500mm (19¾”)
- Vertical auger size 368mm (14½”)
- Loading auger size 200mm (8”)
- Unloading auger size (Optional) 250mm (10”)
- Burner size - Diesel / Kerosene 2,420,000 BTU/hr (600,000 Kcal)
- Fan type and size Centrifugal ø 710mm (28”)
- Fan rating and Outlet static pressure 40,000 m³/hr @ 9.3Mbar 23,540 CFM @ 3.75”
- PTO speed / Power required 470 rpm, 40kW (54hp)
- Recirculating time 90 t/hr (8 min)
- Loading rate 50 t/hr (12 min)
- Unloading rate 80 t/hr (9 min)
- Fuel tank capacity 460 litres
