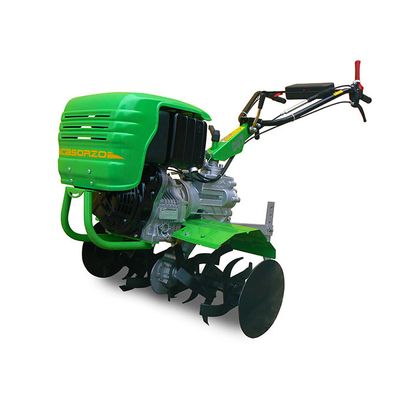

Casorzo - Model CU7 -Diesel Motor Hoe

SHARE

The Motor Hoe CU7 Diesel is a highly professional machine designed to deliver maximum performance. The gearbox has 4 speeds, 3 forward and 1 reverse, operated by a comfortable lever situated at the height of the handlebars. The Handlebars of Motor Hoe CU7 Diesel are adjustable in height and laterally. Accessories available: coulter–ridger plough, single share plough, potato digger plough, transfer wheels, made of full rubber rings with hub, iron wheels, towed cart.

Most popular related searches
rotary tiller
hoeing
hoeing machine
potato harvesting system
plough share
implements - furrow plough
plough
tiller
ridger
furrow

The Motor Hoe CU7 Diesel equipped with a sturdy mechanical gearbox with high resistance gears in oil bath, this rotavator is particularly suitable to work in depth even in very hard, stony soils.

The transmission of the rotary tiller is designed with a pinion and crown in oil bath mounted in a cast iron casing to ensure maximum strength and reliability.

The standard rotary tiller of Motor Hoe CU7 Diesel is 90 cm wide and it consists of 6 rows of hardened steel hoes attached by means of bolts and mounted on a 27 mm hexagonal shaft.

Implements
The ridger plough and the single share plough can be adjusted and connected to the back of the rototiller.

Available motorizations

  • Kohler CH 395: kw7 HP9,5 gasoline
  • Honda GX 270: kw6,6 HP9 gasoline
  • Lombardini 15LD/350: kw6 HP8 diesel
  • Lombardini 6LD/360: kw6 HP8 diesel
  • Lombardini 6LD/400: kw6,5 HP8,8 diesel

Technical data

  • Starter: Recoil starter – Electrical starting
  • Drive: With oil bath gears
  • Gearbox: 3 forward gears + 1 reverse gears
  • Clutch: Conic active
  • Standard rotary tiller: Adjustable with x 6 hoes system and side discs – Working width 900 mm – with hexagonal shaft
  • Hoes system diameter: 34cm
  • Working width area with side discs: Adjustable at 75 – 90 – 120 cm
  • Working depth: 33cm
  • P.T.O.: Upper: 711 rpm – Lower: synchronized with the gearbox
  • Tiller transmission box: in cast iron
  • Standard implement: Adjustable support
  • Handlebar: Height and side adjustment, reversible
  • Safety devices: Active clutch reverse speed PTO cut-out
  • Weight: 100Kg
  • Available implements: Single furrow plough, furrower plough, potatoes digger, trailer, transport wheels
