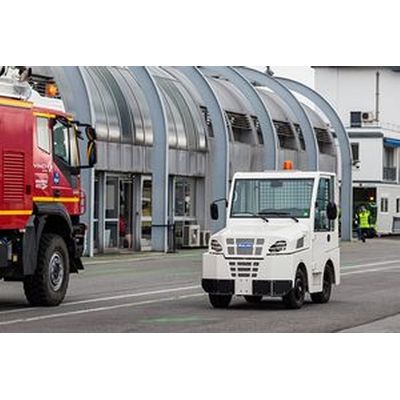

MULAG - Model Comet 4D -Diesel Towing Tractor
Being more powerful the Comet 4D is suitable for baggage handling tasks as well as cargo transport assignments. A considerable range of vehicle options and types of cabin types – available for all Comet towing tractors – enable the optimum adjustment to the task at issue.
Most popular related searches
- Motor data
- Engine : DEUTZ TCD 2.2 L3
- Performance : 55 kW at 2600 rpm
- Emission standard : EU V / US T4f or EU IIIA
- Power train :
- Drive : Semiautomatic, power shift gear Graziano PST 2
- Drive shaft : Kessler differential axle
- Power data :
- Drawbar pull : 35 kN
- Trailing load* : 11.5 t (acc. to BGV C10 at 30 km/h)
- 35 t (acc. to DIN 15172 at 6 km/h)
- Pushback : up to 50 t MTOW (according to IATA)
- Miscellaneous :
- Brakes : Hydraulic dual-circuit brake system, disc brake with two brake calipers per side at the front, disc brake at the rear combined with parking brake (electro-hydraulic spring loaded brake, acting on rear wheels)
- Steering : Hydraulic steering system
- Front axle : Leaf spring mounted steering brake axle with shock absorbers
- Rear axle : Leaf spring mounted differential axle with shock absorber
- Electric system : 24 V
- Tank capacity : 85 l Diesel
- Driving speed : up to 30 km/h
- Dimensions :
- Length (without tow hitch) : 2940 mm
- Width : 1450 mm
- Height (with cabin) : 2220 mm
- Chassis :
- Wheel base : 1640 mm
- Track width (front/rear) : 1233 mm / 1210 mm
- Ground clearance : approx. 160 mm
- Turning circle (outer wheel) : 3750 mm
- Wheels/tires (front) : 205/65 R 16
- Wheels/tires (rear) : 235/65 R 16
- Weights : Dead weight (with closed cab) : approx. 4000 kg
