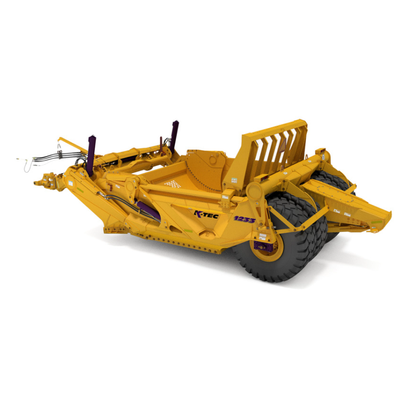

K-Tec - Model 1233 -Direct Mount Scraper

Explore the unique features of the K-Tec 1233. The 1233 is the most popular model in the K-Tec scraper line up. This multipurpose machine is a powerful worker in any soil condition with unmatched fuel efficiency and an amazing loading speed.

• Heaped Capacity (ISO): 33 Cubic Yards
• Struck Capacity: 19.7 Cubic Yards
• Max Loading Rating: 80,000 lbs
• Bucket Dimensions: 12′ W x 4′ 3″ H x 12′ 10″ L
• Cutting Width: 12′
• Cutting Edge: 3-Piece Blade
• Gate Opening: 6′ 8″
• Turning Radius: 26`
• Gate Cylinders: 5″ x 26″
• Lift Cylinders: 5.5″ x 32″
• Ejector Cylinder: 5.5″ x 76″
• Cutting Edge Clearance: 28″
• Hitch Pin to Rear Axle Length: 31′ 5″
• Rack Height (Tiltable): 4′
• Weight Distribution: 25% Tongue, 75% Scraper Axle
• 4 Tires: 23.5 R25 Radial
• Horsepower Required: 350HP +
• Wrap Around Mud Scrapers: Standard
