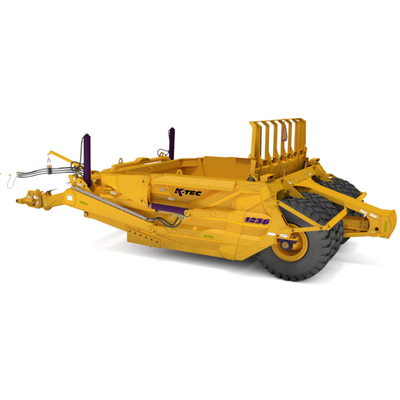

K-Tec - Model 1236 - Direct Mount Scraper
The K-Tec 1236 is the Owner-Operator’s dream machine. Its welded frame and classic design has the best load-to-weight ratio and the lowest cost per yard of any K-Tec model available. The deep bowl of the 1236 contains a heaped capacity of up to 36 Cubic Yards of stackable materials, such as clay. The cost-effective 1236 is thoughtfully designed for light construction and agricultural applications.
Most popular related searches
Explore the unique features of the K-Tec 1236. The 1236 performs like no other, has a loading speed that amazes users and consistently wins field trials, is fabricated tough enough to take a dozer push, has unmatched fuel efficiency, and floatation over mud instead of through it.
- Heaped Capacity (ISO): 36 Cubic Yards
- Struck Capacity: 24 Cubic Yards
- Max Loading Rating: 86,400 lbs
- Bucket Dimensions: 12′ W x 5′ H x 12′ L
- Cutting Width: 12′
- Cutting Edge: 3-Piece Blade
- Gate Opening: 6′ 1½″
- Turning Radius: 26`
- Gate Cylinders: 4.5″ x 26.5″
- Lift Cylinders: 5.5″ x 38″
- Ejector Cylinder: 5.5″ x 76″
- Cutting Edge Clearance: 28.5″
- Hitch Pin to Rear Axle Length: 31′ 11″
- Rack Height (Tiltable): 4′
- Weight Distribution: 25% Tongue, 75% Scraper Axle
- 4 Tires: 23.5 R25 Radial
- Horsepower Required: 400HP +
- Wrap Around Mud Scrapers: Standard
