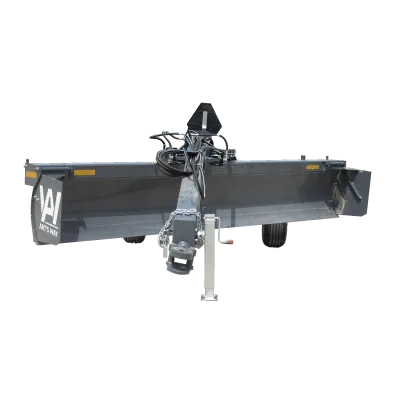

Arts Way - Model LS1200S -Dirt Grader
The LS1200S Grader by Art`s Way is specifically designed for precision in dirt work applications. This equipment is ideal for tasks demanding high levels of accuracy and efficiency, such as grading, leveling, and preparing surfaces for various construction or agricultural needs. With a blade length of 12 feet and the ability to adjust the angle to 43 degrees and rotation to 15 degrees, this grader offers flexibility for different working conditions. It is compatible with tractors providing horsepower between 40 and 180, supporting robust operations. The grader is equipped with a 3,000 lbs weight, ensuring stability while in use. Its construction includes an 8 x 6 x 5/16 inch frame and comes standard with a 6-bolt hub. Additional options are available for enhancements, making it versatile for various configurations. These features make the LS1200S Grader a reliable choice for professionals seeking well-engineered grading equipment.
- 12′ Blade Width
- 15° blade tilt for slope cuts
- 43° blade angle with blade swing
- 15″ Ground Clearance
- 30″ Blade Height
- Requires 40-180 horse power
- Blade Length: 12 ft.
- Blade Angle: 43°
- Blade Tilt: 15°
- Blade Height: 30 in.
- Overall Length: 17 ft. 5 in.
- Ground Clearance: 15 in.
- Transport Width: 8 ft. 4 in.
- Tires: 2-11Lx15
- Hubs: 6 – Bolt
- Horsepower Requirement: 40-180 hp
- Total Weight: 3,000 lbs.
- Tongue Weight: 555 lbs.
- Frame Tube Sides: 8 x 6 x 5/16
- Shipping Dimensions: 14 ft. x 4 ft.
- Rear Steer: Optional
- Gauge Wheels: Optional
