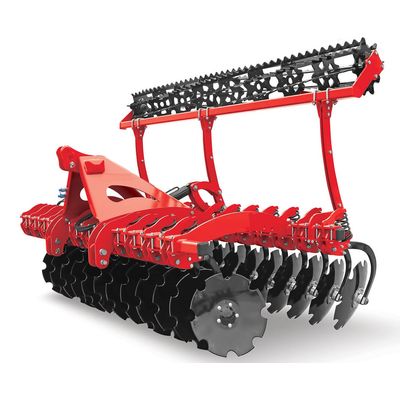

DEMIR - Disc Harrow

SHARE
The spring type disc harrow has an effective chopping and mixing process. Each disc works separately due to independent bearing. With the independent springs on each disc, when an obstacle is attached, the breakages and damage to the chassis are eliminated thanks to the discs moving back and forth. It is less affected by the surface roughness of the land. In addition, the roller attached to the chassis presses the soil removed by the discs at the same time, minimizing the moisture loss after the process.
Most popular related searches
disc harrow
harrow
mower unit
spring harrow
harvesting system
swing hitch land roller

Number of Disc           16 pcs           18 pcs             20 pcs             22 pcs                 24 pcs
Disc Diameter                                                            610x5 mm
Disc row distance                                                         25 cm
Work Width               200 cm           225 cm           262 cm            292 cm               312 cm
Work Depth                                                                 15 cm
Required Power          60 hp             70 hp               85 hp             90 hp                 105 hp
Hydraulic Roller                                                         Optional

We have also 26, 28 and 30 pcs disc models.
