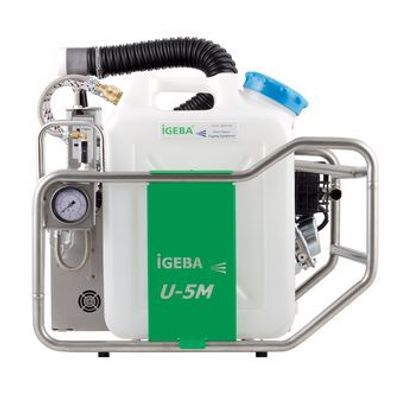

IGEBA - Model U 5 M - Disinfection and Pest Control Aerosol Generators
IGEBA U 5 M is a high quality ULV cold fog generator in compact design for professional application in the fileds of disinfection, pest and vector control. A variety of modular options allows flexible use to cover various applications. Due to the low noise emission it is ideal for treatments in residential areas, hotels etc.
Most popular related searches
Mounted on a vehilcle (e.g. pick-up or golf caddy) in combination with the remote control and the transport device it is very user friendly. The quick coupling system for the fast exchange of the solution tank and a built-in manometer for measuring operating pressure offer additional comfort.
- Adjustable spray nozzle
- More than 2 h working capacity without fuel refilling
- Compact design: frame completely made of stainless steel
- 2,6 KW (3,5 HP) Briggs & Stratton 4-stroke engine
- Modular options
Dimensions
- L x W x H in cm 60 x 53,5 x 58
- Weight (empty) in kg 38
Engine
- Solution system(4 cycles) PS/KW 3,5 / 2,6
- Fuel tank capacity in l 2
- Fuel consumption in l/h aprox. 0,85
- Speed (U/min) 2860
- Air compressor
- Drive 1 belt drive
- Discharge rate (m3/min.) 1
- Pressure (bar) 0,2
- Air filter Foam filter
Solution system
- Nominal volume of the HD-PE solution tank in l 20
- Number of nozzles 1
- Aerosol nozzle 135° horizontal - Vertical 50° continuously adjustable
- Output quantity in l/h 10 l with 0,8 nozzle
- Output quantity (max.), in l/h -
- Droplet spectrum VMD, only water < 25 Micrometers
- 10 l. per nozzle
Control
- Solution line control Fogging ON / OFF- Motor (Handstart)
- Engine Engine ON / OFF, Handstart engine
