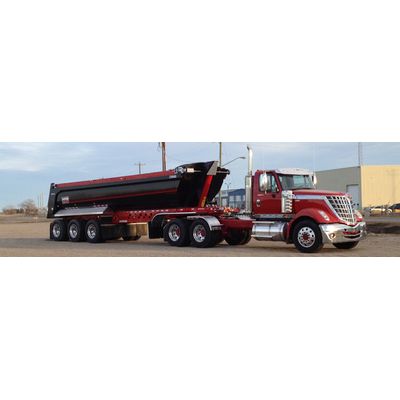

Doepker - Impact End Dump Trailer
When Doepker introduced our "patent pending" Impact gravel end dump design in 2009, it was the first time our market had seen anything like it. Strongest, lightest, most stable, multi-purposed, and highest resale in its class is what you receive when you invest in our Impact gravel trailer. Available in a tridem or tandem, this highly engineered design offers Hardox as the standard tub material integrated with our special tapered tub design that offers superior clean out.
The Impact end dump gravel trailer gives you the ability to move your tub back and forth on the frame to adjust rear tub overhang. This gives you the flexibility to haul asphalt into a paver or allows you to increase wheelbase to provide the ultimate payload on all of your axle groups when stock piling aggregates or hauling contaminiated soil. Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this industry changing gravel trailer.
STANDARD FEATURES:
- Length Tandem - 26` 9"
- Tridem - 34`
- Overall Width 8 1/2`
- Tub Wall Height 51 1/2"
- Capacity Tandem - 33.7 Cubic Yards with 8" Side Boards
- Tridem - 40 Cubic Yards with 8" Side Boards
- Tare Weight Tandem - 13200 Lbs
- Tridem - 16550 Lbs
- GVWR Tandem - 35000 Kgs
- Tridem - 37500 Kgs
- Landing Gear Jost Magnum 2 Speed Landing Gear
- Optional: Extendable Drop Leg Landing Gear
- King Pin Tandem - Set at 28" - 1/4" Coupler Plate
- Tridem - Set at 16" - 1/4" Coupler Plate
- Main Beams Web:
- Flange:
- Tub
- 4mm Hardox 450 Wall and Floor
- Tapered Tub Design (Longitudinal Bends) For Maximum Strength, Weight, and Best Cleanout
- D Shaped Tub
- "Quick Adjust" Box Locations Including "Paving Equipment" Setting
- Ultra Stable Design
- Optional: Aluminum Checkerplate Installed on Front Panel
- Cylinder Tandem: HYVA FEE 8-5-243
- Tridem: HYVA FEE 9-5-269
- 1" Female Quick Coupler at Front of Trailer
- Optional: 1" Male or Female Winged Coupler at Front of Trailer
- Optional: Pressure Relief Valve
- Ladders Ladder at back on D/S
- Optional: Additional Ladder Installed at Front of Trailer on D/S
- Back of Trailer Push/Pull Brackets
- Standard End Gate
- Optional: Sealed End Gate
- Side Boards 8" Fir Side Boards
- Optional: 10" Fir Side Boards
- Air System Aluminum Air Tanks
- Inline Air Filtration System Built into Glad hands
- Tires Michelin or BF Goodrich
- Rims Various Steel and Aluminum Options
- Serial Plate(s) Canada
- Safety Certified Yes
SUSPENSION:
- System Hendrickson Intraax AAT 25K LDA14" Air Ride 25000 Lbs with Cam Tube Enclosures
- Optional: Hendrickson HT300 - 15" Air Ride with Cam Tube Enclosures, with Axles Rotated so Brake Pots are Front and Up
- Optional: Doepker Auto Lift Management System with Meritor Control Valve (Tridem Model Only)
- Optional: Truckweight Wireless Scale System
- Wheel Seals Stemco Guardian
- Brakes Abex 16 1/2" x 7" Extended Life
- Antilock Braking System Meritor Wabco 2S1M (2 Sensors / 1 Modulator)
- Optional: 2S2M (2 Sensors / 2 Modulators)
- Optional: 4S2M (4 Sensors / 2 Modulators)
- Axle Spread 49" Tandem - 77 1/2" Track Width
- 60" Tridem - 77 1/2" Track Width
- Auto Slack Adjusters Gunite
- Spring Brake Pots 30/30 TSE Omnibrake
- Wheel End Cast Hub and Drum
- Optional: Duralight Hub and Centrifuse Drum Combinations
- Optional: Hubodometer - Metric or Imperial
PAINT AND FINISH:
- Blast Completely Steel Shot Blasted
- Special Coatings Pure Zinc on Complete Steel Outside
- Primer PPG Epoxy Primer Inside and Out
- Top Coat PPG Urethane / Acrycote Systems - All Colors Available
- Professional Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion and Cure
- Safety Reflective Tape
LIGHTING:
- Wiring Harness Severe Duty Sealed Harness System
- Custom Designed by Trucklite for our Light Packages
- Lighting Trucklite LED as per CMVSS with Side Signals
TARP:
- Tarp Michel`s Gravel Guard - Vinyl, Mesh or Neoprene
- Tarp Openers Manual Chain Drive
- Optional: Electric Drive with Manual Chain Drive Backup
- Hoops 12" Standard Tarp Hoops
- Optional: 18" High Rise Tarp Hoops
PROTECTIVE FEATURES:
- Fenders Galvanized Flat Fenders at Front
- Aluminum Checkerplate Fenders at Back
- Optional: 166 Degree 1/2 Round Fenders at Back - Galvanized, Stainless Steel or Minimizer Poly
- Mudflaps Doepker Mudflaps at Rear
- Full Width at Landing Gear
- Full Width in Front of Suspension
- Full Width at Back
- Placard Holders Optional: On Each Side
- Spare Tire Carrier Optional: C/S
