Domatex - Gooseneck Roll-Off Trailer
FromDomatex Inc.

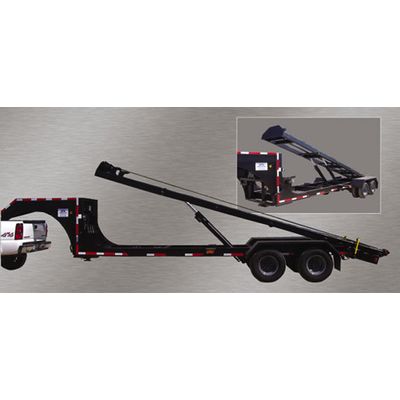

Model shown is GN-20 Gooseneck Roll-off trailer which has a 20,000 lbs. load capacity. Also available GN-30 with 26,000 lbs. and GN-40 with 32,000 lbs. capacities.
Most popular related searches
- Structure Carbon Steel, Fully Welded
- Dimensions 33 ft. L 7.9 ft. W 6.33 ft. H
- Container Roller Supports 5 - Solid Steel Roller Supports with Internal brass Bushing, Driven by 2" Solid Steel Pinion Extending the Width of Trailer
- Hydraulic System 12 gpm @ 2000 psi
- Control System 3 - Way, 3 - Control Valve Manifold
- Power Unit 15 hp. Single Cylinder Diesel Motor with Safety Switches 15 hp. Single Cylinder 20 hp. Double Cylinder
- Axles 2 - 10,000 lbs Heavy Duty Dually With Disc Brakes 2 - 12,000 lbs 2 - 15,000 lbs
- Suspension Tandem Heavy Duty 10,000 lbs. 20,000 lbs 32,000 lbs
- Brake System Electric Over Hydraulic, Self - Charging with Safety Break Away
- Lift System 2 - 4" Bore Hydraulic Cylinders, Double Acting 2 - 5" 2 - 5"
- Pull System 12,000 lbs. Line Pull, Direct Planetary Hydraulic Winch 12,000 lbs. 20,000 lbs.
- Container Locks Hydraulic Actuated Heavy Duty Security Lock Downs
- Wheels 8 - D/W 16 x 6 x 865 - 3,000 lbs. (8 studs) 16 - 8 17.5 - 10
- Safety Equipment DOT Reflectors, DOT Bumper, Security Trailer Chains, Breakaway Brake System, Container Hydraulic Locks, Bullnose Rollers Security Locks
