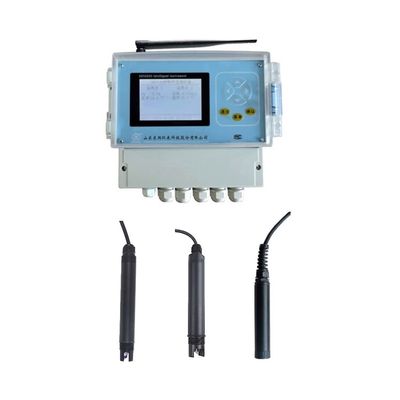

Dongrun - Model DR-9180 -Aquaculture IoT Monitoring Terminal for Water Quality
The DR9180 is an advanced aquaculture monitoring IoT terminal designed to enhance the management of water quality. It supports both freshwater and seawater applications, allowing integration with sensors for dissolved oxygen, pH, and conductivity in freshwater environments, and dissolved oxygen, pH, and salinity in seawater settings. The system facilitates data acquisition, real-time monitoring, and parameter adjustments, featuring external 485 output capabilities and platform uploads. Users can access data via a mobile app, enabling flexible monitoring on-the-go. The device supports up to nine measuring points concurrently, utilizing 4G for IoT communications to ensure rapid, wireless data transmission. The terminal operates within temperature ranges of 0 to 50 degrees Celsius and can measure salinity up to 70 parts per thousand, making it adaptable to varied environmental conditions. Robust packaging ensures the protection of the device during transit.
At present, DR9180 includes two versions, fresh water, and seawater. The freshwater version can be connected to dissolved oxygen, PH, and conductivity, and the seawater version can be connected to dissolved oxygen, PH, and salinity. The IOT transmission mode is 4G.
The DR9180 aquaculture monitoring IoT terminal has monitoring functions such as data acquisition, screen display, parameter setting, external 485 output, platform upload, mobile APP display and query, etc. It can monitor dissolved oxygen, PH, conductivity, or salinity in real time. Up to 9 measuring points can be connected at the same time, which is the best choice for wireless monitoring.
- Isolated RS485 interface, fully protect terminal equipment
- Adopt 4G module communication, stable transmission
- Automatic address search and address setting for a single sensor
- The collected data can be displayed on-site in real time, or output via 485 externally, and can also be queried through the mobile APP at any time.
- External calibration correction for sensor possible
- The data output can be directly to the Dongrun platform or to the platform specified by the customer.
- English operation interface.
- Two-way relay output control, control mode can be set
- Supporting the host computer software, the external 485 transmission can directly display the corresponding monitoring point data
- APP can view real-time data and historical records at any time
- Power supply: 220VAC, 50 Hz;
- Power consumption: maximum 15W
- Housing: Plastic
- Dimensions: 235*213*119mm
- Weight: 1.5kg
- Working temperature: -20～+85℃
- Storage temperature: -20～+85℃
- Relative humidity: 95% (non-condensing)
- Waterproof grade: IP65
- Sensor single power supply voltage: 12VDC, maximum current 800mA.
