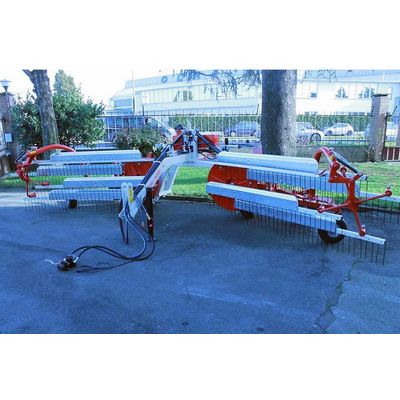

Mainardi - Model 1292 - Double Trailed Comb Rake
The main feature of this machine is the large working capacity guaranteed by the collection width and the high speed of advancement. The traditional comb raking system is the most effective for the best and most complete collection of forage, which remains soft, clean and whole.
The reels are moved by an autonomous hydraulic system, activated by the power take-off. The lifting of the raking groups is instead controlled by the tractor`s hydraulic outlets. All hydraulic movements are protected by special valves appropriately calibrated.
The machine works easily even on uneven terrain thanks to the balance of the combs and the joints it is equipped with.
The width of the swath is easily hydraulically adjustable to three positions: 1.00 m, 1.20 m, 1.40 m.
- Working width : 6.00 m
- Transport width : 2.45 m
- Transport height : 3.00 m (approximately)
- Weight : weight Kg. 990 (approximately)
- Maximum working capacity : ha/h 6
- Minimum power required : 20 HP
