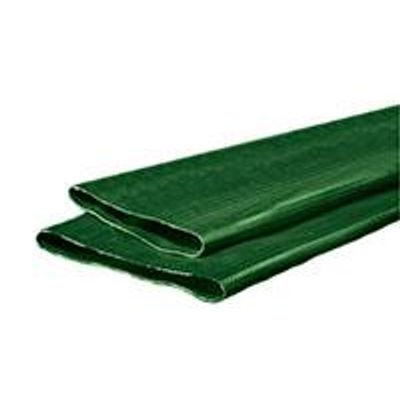

Kuriyama - Model OFDG-400x660 - Drag Polyurethane Manure Drag Hose

Construction: Green polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.

Service Temperature Range

• Service Temperature [Min]: -50 ºC-58 ºF
• Service Temperature [Max]: 65 ºC150 ºF
• Intermittent Service Temperature Range: 79 ºC175 ºF

• Premium Polyurethane (TPU) Material -Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
• Unique Woven Construction -Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
• Longer Lengths -Manufactured in special 660 foot lengths to reduce possible leaking points.
• Smooth TPU Tube -Provides low friction loss.
• Compact Design -Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.

Nominal Specifications

• Size: 4 in101.6 mm
• Hose ID: 4.110 in104.4 mm
• Wall Thickness: 0.140 in
• Working Pressure at 68ºF: 245 psi
• Burst Pressure at 68ºF: 605 psi
• Coil Length: 660 ft
• Tensile Strength: 28,900 lb
• Weight: 0.87 lbs/ft

Specifications

• Brand: Kuriyama
• Type: Drag Hose
• Series: OFDG
• Material: Polyurethane
• Note: This is a non-stock product. Minimum order requirements may apply. Contact Kuriyama customer service for details.
