A.A.S. - Model T250 FL - Drip Irrigation Production Line

The feeder unit consists of a pre-feeder with hopper storage for the emitters, the centrifugal feeder, a buffer of emitters for approximately one minute back up at the maximum inserting speed and a conveyor. The capacity of the feeder unit with A.A.S. Turbo flat emitters up to 1.250 emitters per minute. The Inserting Unit encompasses a programmable controller which enables inserting of flat emitters at user selected spacing. Inserting unit`s capacity with Turbo flat emitters up to 1.250 emitters per minute at operating speed.

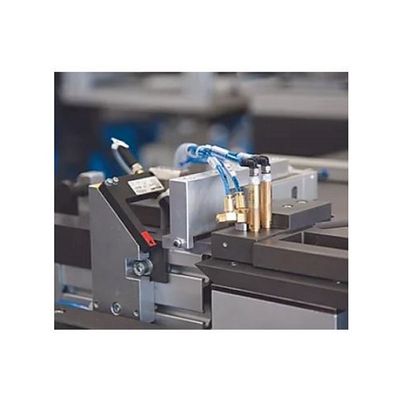

The drilling unit design along with fast motion robotic algorithms enables industry leading production speeds, combined with minimum vibration and high mechanical strength. Drilling capacity of the unit, with Turbo flat emitters is up to 1.250 holes per minute at a line speed of up to 250 meters per minute.

The system constantly detects actual position and shape of all water outlet holes. On a fail result, the closed-loop control system activates a servo motor for the correction of left/right errors, or adjusts the activation of the drilling mechanism through software for the correction of front/back errors.

T250 FL is offered with a dual option for the inserting and drilling system of emitters. The production line may process both A.A.S. Cyclone PC and Turbo flat turbulent emitters. Alternatively, T250 FL can operate with any flat emitter.

• 75/36 single screw extruder
• Manual Screen changer
• PE pipe crosshead with single, double or triple layer with striping option
• Vacuum calibration
• 16 meter water cooling module
• Closed loop water circulation system
• Inserting and drilling system
• Caterpillar haul off
• C250 flat dripline coiler
