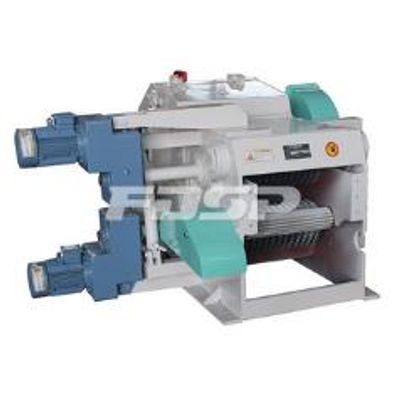

FDSP - Model LYGX Series -Drum Chipper
LYGX series drum chipper is direct process large diameter wood, wood harvesting residues (branches, etc.) and wood processing residues (board, slats, log core, waste veneer, etc.) into small pieces. LYGX series drum chipper is compact and reasonable in structure, easy to operate, high in productivity, wide in adaptability of raw materials, high in quality of cutting chips, safe and reliable, and easy to maintain. It is one of the most advanced chipping machines in China.
Most popular related searches
drum chipper
wood residues
wood residual
wood harvesting
wood chipper
automatic control feeding system
drum wood chipper
chipper wood
harvesting system
compact chipper
- The chipper consists of a base, a knife roll, upper and lower feeding mechanism, feeding device, hydraulic buffer system and electrical control system;
- The blade is made of special material, high strength and strong wear resistance;
- The knife roll is processed as a whole, and it is checked by dynamic balance to improve accuracy and run smoothly;
- The press material system adopts the hydraulic system automatic control, and the feeding system adopts frequency conversion control;
- The bottom knife seat is made of forgings with high strength and long service life;
- Patented knife roll structure, the chipping efficiency is increased by 30%-50%, and the main power is reduced by 30%-50%, and the use cost is greatly reduced.
