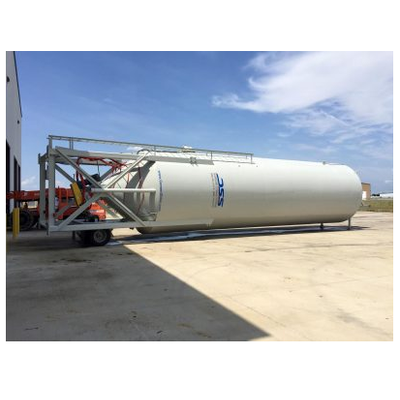

DSS - Model 1400c.f. -Positive Feed Silo
Our Positive Feed Silos are delivered fully assembled and come with a wide range of benefits designed to make your job as easy and efficient as possible. Using a built-in dual auger system, these silos operate by using a small auger to feed directly into the main delivery auger.
Most popular related searches
All positive feed silos include the following features:
- Internal 10” Auger 10hp 480v motor gear reduction.
- Feed down auger, chain drive
- WAM Shaker R03 dust collector with an electric shaker on a timer
- WAM VCP Overpressure relief valve
- 9 Oli VBI Fluidizers all connected to an aluminum manifold with individual control valves
- 20” manway on top of the silo
- High-level indicator with horn and light
- Full ladder with safety cable system
- Full upper railings
- 20” pressure manway on cone
- Heavy-duty support legs
- 480v 100amp Allen Bradley electrical starter panel with all controls wired to the silo
- Pintel hitch trailer connection with electric brakes, running lights, two 16” 7K torflex axles
- 8 lug wheels.
- Prime and Painted DSS Grey
- Scale system
- 12” auger
- Variable speed drives
- Pulse Jet dust collector from 1500-2200 cfm
Also available up to 4800c.f. capacity.
