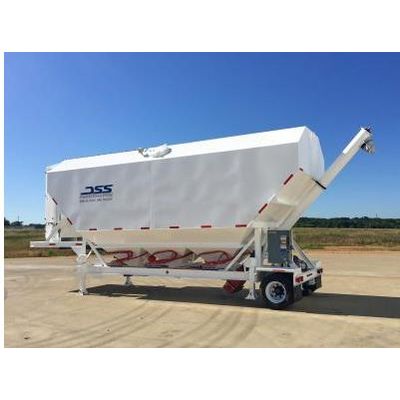

DSS - Model Lo-Pro 300 -Horizontal Portable Low-Profile Silos
Lo-Pro 300 horizontal portable silos boast a 1200c.f. capacity and are used across a wide spectrum of jobs, used to store dry powders including cement, fly ash, sand, guar, chemical powders, and more.
Most popular related searches
- Silos are 8′-6″ wide x 13′-6″ tall, 35′-0″ overall length.
- 10″x17′ discharge screw, 10Hp 3Ph motor and gear reduction, chain drive, lube block seal
- 7”x12’ Curry over auger 5HP 3PH motor and gear reduction, chain drive, lube block seal
- Low profile manual emergency slide gate
- 32 OLIVBI air fluidizers with manifold and individual control valves
- AirMax 225 Static Dust Collector with an electric vibrator
- WAM VCP over the pressure relief valve
- High-level indicator with horn and light
- Two OLI MV 690 480v vibrators mounted on the cone with timer interlocked to auger
- 480v 50amp Allen Bradley Electrical starter panel with all controls wired to the silo
- 5th Wheel trailer connection with air brakes, running lights, 15K spring axle with dual wheels
- Prime and painted DSS Grey
- Gas Hydraulic Drive
- Variable Speed Drive
- Scale system with batching program
