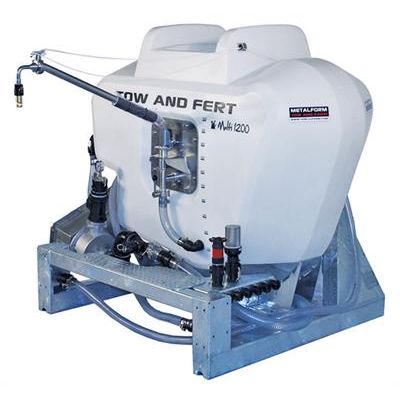

Tow and Fert - Model Multi 1200 -Dual Boom Fertiliser Sprayers
The Multi 1200 Dual Boom is a 3-point linkage chassis and boasting a spray width up to 24 metres and can have optional crane and wheels.
With a 1200 litre capacity this machine can easily dissolve 1⁄2 tonne of urea in cold water, or hold 1.5 tonne of dry fine particle product in suspension. The Multi 1200 Dual Boom features booms with a spray width of up to 22 metres. Using the optional on-board crane and being able to dump product directly out of a bulk bags, makes it very fast to load and operate. The agitation system features a patented housed impellor which ensures product can never settle out of suspension. The Multi 1200 can self-fill the machine by sucking the liquid from the effluent pond instead of using fresh water. Using just 1 pair of auxiliary tractor hydraulics, the Multi 1200 is simple and hassle-free. The agitation and pump for spraying is driven off the same drive mechanism, so they always run concurrently. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be done in the field. Depending on application rate, the Multi 1200 has the capacity to cover approx. 12 hectares in one load.
- tank volume 1200 litres (320 gallons)
- spray width Up to 22 metres (72 feet)
- application rate Variable from 50 – 500 litres/hectare
- attachment style 3 Point Linkage, Trailed
- attachment vehicle 110hp tractor or greater
- agitation powered by Hydraulics – 55litres/min
- area per load approx. 8-14 hectares (20 – 35 acres)
- pump model Metalform Stainless 3” Centrifugal Trash Pump
- pump performance 1300litres per minute at 0 metres lift. Max lift = 4 metres
- pump powered by Hydraulics – 55litres/min
- dry weight 750kg
- full weight 2,500kg
- size 1.65m (L) x 2.00m (W) x 1.70m (H)
