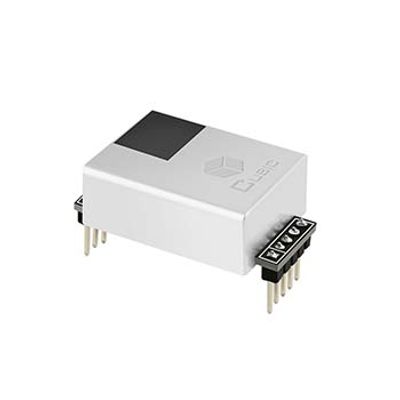

Cubic - Model CM1109 - Dual IR Sources NDIR CO2 Sensor Used for Ventilation System, Air Purifier, Air Conditioner, Intelligent Agriculture, Storage and Cold-Chain
NPI-New Product Information. Cubic patented two-engine dual beam NDIR CO2 sensor CM1109 is used to detect CO2 concentration of indoor air by adopting infrared (NDIR) technology. With higher accuracy and better stability, it is widely used for ventilation system, air purifier, air conditioner, intelligent agriculture, storage and cold-chain, etc.This product also has excellent dual-channel performance, but it is better cost effective than dual channel.Most popular related searches
- Air Purifier
- Fresh Air System
- Fresh Air System
- Air Quality Monitor
- Household & Central Air Conditioner
- Greenhouse
- Measurement range: 0~5000ppm default（0~10000ppm could be customized）
- Response time: ≤30s
- Accuracy: ±(50ppm+3% of reading) @0℃~50℃, 50±10%RH
- Working temperature: -10℃~50℃
- Working humidity: 0~95% RH（non-condensing）
- Power supply: DC3.5V-5.5V
- Ripple wave: ＜50mV
- Working current: Average＜45mA
- Signal output: UART_TTL, PWM, I²C
- Dimensions: W33*H8.7*D19.7（mm）
- Dual IR source NDIR technology with independent intellectual property
- High accuracy, long term stability, long lifespan(＞15 years)
- Matrix calibration within whole measurement range and temperature range
- Small size and compact structure, easy to install
- Signal output PWM/UART/ I²C
