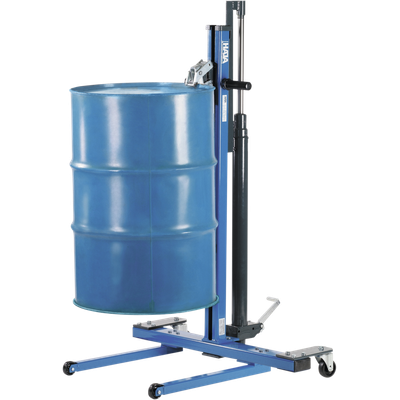

DÜPERTHAL - Drum Lifter Trolley, Hydraulic Frame Blue Painted
The hydraulic drum lifter trolley from Dueperthal is specifically designed for the safe and efficient handling of 200-liter drums. Constructed with a user-friendly pump operated by a foot lever, this trolley ensures precise and safe kneeling actions. The adaptable legs fit seamlessly to Euro pallets, enhancing its versatility in various handling environments. Painted in a durable blue RAL 5010 finish, it features a robust frame with outside dimensions of 960 mm width and inside frame dimensions of 870 mm width. The height is adjustable from a minimum of 1410 mm to a maximum of 1915 mm. The total length of the trolley is 850 mm, with legs measuring 570 mm in length and 65 mm in height. It is equipped with two stand rollers of 65 mm diameter and two swivel rollers of 80 mm diameter. The lift height reaches up to 700 mm, and it boasts a load-bearing capacity of 300 kg, while the entire unit weighs 67 kg.
for pick up and transport of 200 l-drums, user friendly pump with food lever, safe and exact kneeling possible, the legs are adapted to euro pallets. Painted blue RAL 5010. Dimensions approx.: Frame width outside: 960 mm Frame width inside: 870 mm Height min./max.: 1410/1915 mm Length complete: 850 mm Length of legs: 570 mm Height of legs: 65 mm 2 stand rollers with dia = 65 mm 2 slewable with dia = 80 mm Lift height: 700 mm Load bearing capacity: 300 kg Weight: 67 kg
- Field of Application: Storage equipment and accessories
- Width: 850 mm
- Depth: 960 mm
- Height: 1410 mm
- Weight: 90 kg
