- Dump Body

0

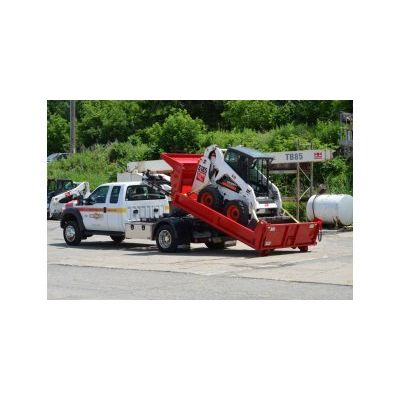

Our Switch-N-Go dump body is available in six standard lengths, from 9 to 14 feet long, as well as two classes, standard and heavy duty. These dump bodies all come with our top quality powder coated finish which is boosted by our triple stage wash to ensure proper curing and rust resistance.

Our dump body come standard with industry respected features like two way dump gates and variable height bulkheads. Options for our dump bodies include heavy duty tailgates, contractor (fold-down) sides, extended board pockets, cab shields and tool boxes.

Additionally, available exclusively from Switch-N-Go® the patented barn door dump gate, which allows users to use their dump body in ways they never thought of before.

STANDARD DUTY

  • Floors are made of 10GA
  • Sides is constructed with 12GA
  • Crossmembers are constructed of 3″ Structural Channel that are 16″ on center

HEAVY DUTY

  • Floors are made of 3/16″
  • Sides is constructed with 10GA
  • Crossmembers are constructed of 3″ Structural Channel that are 16″ on center

ALL BODIES

  • Bulkhead inside height is 39″ or 51″
  • Tailgate is constructed with 2″ x 2″ 3/16″ tubing with 10GAsheet
  • Specifications are subject to change with or without notice. Products not warranted for any specific purpose.

  • High quality powder coated finish up to 14′
  • Ramp gate for drive-on convenience
  • Accepts underbody salt spreader
  • 12″ side height & 24″ tailgate height
  • Standard 6″ steel rollers
  • Custom options available

  • 18″ Cab Shield
  • Optional Coal Chute
  • D-Rings: Can be factory installed based on your needs
  • Optional extended board pockets
  • Optional aluminum or Steel fold down sides
