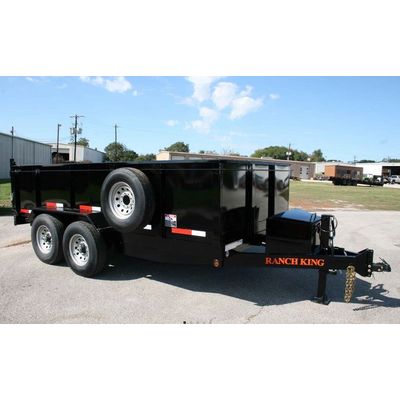

Ranch King - Model DT14 SERIES (14,000# GVWR) Series -Dump Trailer
The 14 series Dump trailer is equipped with 7000# Axles and Electric brakes on both for a GVWR of 14000#. Fitted either tongue-pull or gooseneck. HD Scissor hoist 30″ sides standard.
Most popular related searches
- GVWR: 14.000 #
- AXLES: (2) EZ LUBE 7.000# DEXTER AXLES
- BRAKE: (2) ELECTRIC BRAKING AXLES
- COUPLER: 2-5/16" BULLDOG STYLE COUPLER
- HOIST: SCISSOR
- PAY CAP: 5 TON
- SIDE HEIGHT: 30"
- WIDTH: 610"
- YRDS: 14` = 9 YRDS/ 16` = 10.5 YRDS
- TONGUE: 6"X 13## CHANNEL WRAP TONGUE
- NECK: C10 X 153# CHANNEL NECK
- FRAME: 6"X13# CHANNEL
- CROSS MEMBER: 3" FORMED CHANNEL ON 20" CENTERS
- FENDERS: 1/8" HEAVY DUTY DIAMOND PLATE FENDERS
- FLOOR: 10 GA
- RAMPiSR 6`SLIDE RAMP
- JACK: 15.000# DROP LEG JACK/SAND FOOT
- LIGHTS: LED LIGHTS ENCLOSED STEEL BOXES
- WIRING: SEALED HARNESS RAN THROUGH FRAME
- MOUNT: SPARE TIRE MOUNT
- TIRES: (4) NEW 235/80R16E 10-PLY
- WHEELS: 16° MOD WHEELS (8-LUG)
- PREP: COMMERCIAL BLAST
- PRIMER: EPOXY PRIMER
- PAINT: URETHANE TOPCOAT
- SAFETY: 3/8" SAFETY CHAINS/DOT REFLECTIVE TAPE
- TIE DOWN: STAKE POCKETS ON EVERY UPRIGHT
- STORAGE TRAY/TOOLBOX: TONGUE TOOL BOX FOR PUMP HOUSING/STORAGE
- 235/ 85R 16″ 14 PLY
- 48″ SIDE UPGRADE/ 14′ = 14.1 YRDS/ 16′ = 16.1 YRDS (PAY CAP: 5 TONS)
- 3/8” D-RINGS (SPECIFY LOCATION)
- HYDRAULIC BRAKES
- GOOSENECK (GNDT) 10″ X 15# CHANNEL NECK
